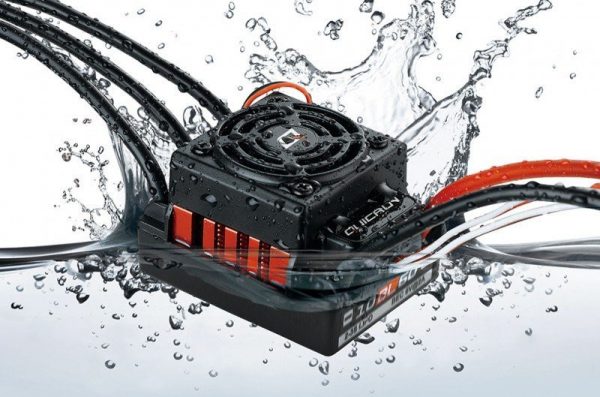

HobbyWing 30107100 QUICRUN WP 10BL60 SL Brushless ESC

RM205.00

HobbyWing 30107100 QUICRUN WP 10BL60 SL Brushless ESC

7 in stock

SKU: HW-30107100 Category:

Description

HobbyWing 30107100 QUICRUN WP 10BL60 SL Brushless ESC

✨ Ready Stock
✨ Local Seller
✨ Malaysia Oficial Distributor

⚡Easy Operation

This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products
but simplifies the operation

⚡Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-10BL60
to be used in all weather conditions without any issue of damage
caused to the ESC from water or dust.

⚡High Reliability & Durability

Reliable hardware combined with advanced software technology
allows the QUICRUN 10BL60 to not only provide high power output but
also overload protection of the ESC circuit.

⚡Built-in BEC

The built-in switch mode BEC with a maximum output of 6Amp and voltage
of 6V make this ESC compatible with various servos.

⚡Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease

⚡Product Specification

-Type

  • Scale : 1/10th
  • Brushed/Brushless : BL
  • Sensored/Sensorless : SL
  • Waterproof : WP

⚡Specifications

  • Cont./Peak Current : 60A/360A
  • Input : 2-3S LiPo/6-9 Cells NiMH
  • BEC Output : Switch Mode:6V/3A

⚡Wires & Connectors

  • Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
  • Output Wires : Black-14AWG-100mm*3
  • Input Connectors : No
  • Output Connecotors : 4.0 Gold Connector (Female)

⚡Fan

  • Size : 30.0×30.0x10.0mm
  • Voltage Range : 5-7.4V
  • Powered by : Powered by BEC

⚡ESC Programing via

  • SET Button on ESC : Supported
  • LED Program Box : Supported
  • LCD Program Box : Not Supported
  • WiFi Module : Not Supported
  • Program Port : FAN/Program Port

⚡Firmware

  • Firmware Upgrade : Not Supported

⚡Size & Weight

  • Size : 48.5×38.0x32.0mm
  • Weight : 90g

⚡Applications

  • Motors : SL BL Motors/SD BL Motors(only in SL mode)
  • Vehicles : 1/10th Touring Cars/Buggies/Trucks/Monster Trucks

Additional information

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
