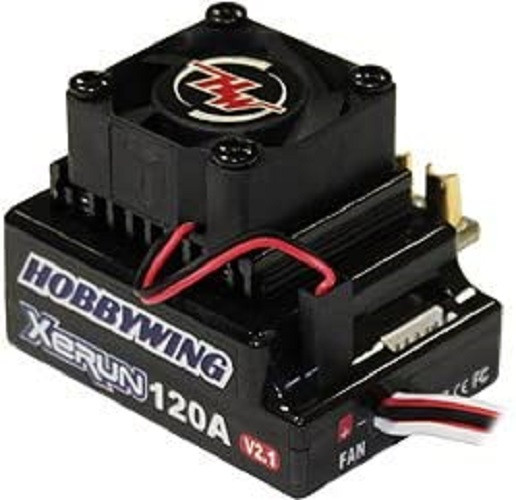

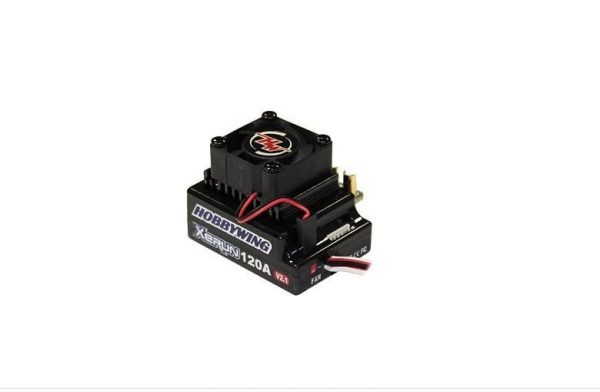

Hobbywing 81020171 XERUN-120A-V2.1-BLACK

RM365.00

Hobbywing 81020171 XERUN-120A-V2.1-BLACK

3 in stock

SKU: HW-81020171 Category:

Description

Hobbywing 81020171 XERUN-120A-V2.1-BLACK

Hobbywing 81020171 XERUN-120A-V2.1-BLACK

ESC ideal for touring cars, off-road cars, drift cars, etc. Equipped with a cooling fan to handle harsh racing scenes. In addition to lipo-cut voltage, reverse ON/OFF, and brake feel, acceleration force and electronic advance angle can be adjusted. Furthermore, by updating the firmware by connecting the separately sold 2in1 program BOX and a PC, it is possible to set a variable advance angle.
(2in1 program box is required to update firmware and change program settings)

[Features]
●Both sensor type and sensorless brushless motors are supported.
● Supports user programs and can be applied to various races by programming a large number of items.
●Programs can be easily changed using the ESC set key
●Digital LED program card/multi-function program BOX available.
●Multiple protection functions: low voltage cut-off protection, overheat protection, throttle signal loss protection, motor block protection.
●Resistant to water droplets and dust.

Output: Continuous: 120A/Max 760A
Voltage Input: Lipo: 2-3 cells, NiMh/NiCd: 4-9 cells
BEC Output: 3A/5.75V Linear Mode
Resistance: 0.0003 Ohm
Compatible Brushless Motor:
  Lipo: 2 cells, NiMh/ NiCd: 4-6 cells: 1/10 on-load ≥3.5T 1/10 off-load ≥5.5T
  Lipo: 3 cells, NiMh/NiCd: 7-9 cells: 1/10 on-road ≥5.5T 1/10 off-road ≥8.5T
Compatible models: 1/10-1/12 on-road & off-road cars, normal races & competitions Race track, 1/10 to 1/8 rock crawler
Size: 43 x 36 x 33mm (L x W x H)
Weight: 105g

Additional information

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
