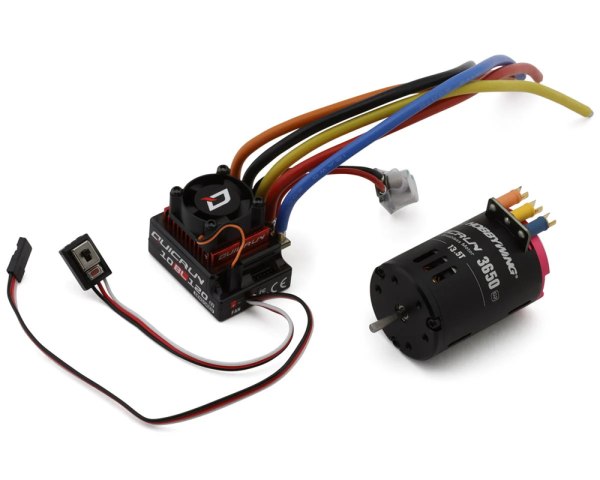

HOBBYWING COMBO QR10BL120 SD G2 QR3650SD 13.5T/10.5T G2
38020382
SPECIFICATIONS:
- ESC:
- Cont./Peak Current: 120A / 760A
- Motor Type: Sensored/Sensorless Brushless motor
- Applications: 1/10th Touring, Buggy, Drift
- Motor Limit: 25 Lipo: >4.5T 3S Lipo: > 10.5T 3650 size motor
- LiPo Cells: 2-35 Lipo
- BEC Output: 6V/7.4V @ 4A (Switch-mode)
- Cooling fan: Powered by built-in BEC
- Size/Weight: 44(L) x 36.8(W) x 32.3(H) / 101.5g (w/Wires)
- Programming port: Throttle cable
- MOTOR:
- KV: 2850
- Lipo: 2~3S
- Pole: 2
- No-load Current: 2.4
- Outer Diameter: 36mm
- Length: 52.8mm
- Weight: 186g
- Shaft: 3.17mm
HW-38020381
Specifications (ESC)
- Type: Brushless, sensored
- Continuous/Burst Current: 120A / 760A
- Input Voltage: 2–3S LiPo
- BEC: 6V / 7.4V at 4A (switch‑mode)
- Motor Types: Brushless motors with or without sensor
- Motor Limit: 2S ≥ 4.5T (3650); 3S ≥ 10.5T (3650)
- Fan: Yes, powered via BEC
- Programming: SET button / LED programming card / LCD programming box (G2)
- Dimensions: 44 × 36.8 × 32.3mm
- Weight: 101.5g
Specifications (Motor)
- Type: Brushless, sensored inrunner
- Poles: 2
- KV Rating: 3600kV
- Turns: 10.5T
- LiPo Cells: 2–3S
- No‑load Current: 2.8A
- Outer Diameter: 36mm
- Length: 52.8mm
- Shaft Diameter: 3.17mm
- Weight: 186g
- Timing: Fixed
Technical Data
- Cells: 2–3
- ESC: QuicRun 10BL120 G2
- Current (cont./short): 120A / 760A
- Scale: 1:10
- BEC: 6–7.4V / 4A
- Set Weight: 287.5g
- Drive Type: Electric
Suggested Compatibility & Use Cases
- 1/10 and 1/12 on‑road (racing or drift touring cars, F1, M chassis) and off‑road (buggies, 2WD SCTs, trucks)
- STOCK/SPORT class competitions
- Beginners for practice and rock crawlers (applies to 21.5T and 25.5T motors)
