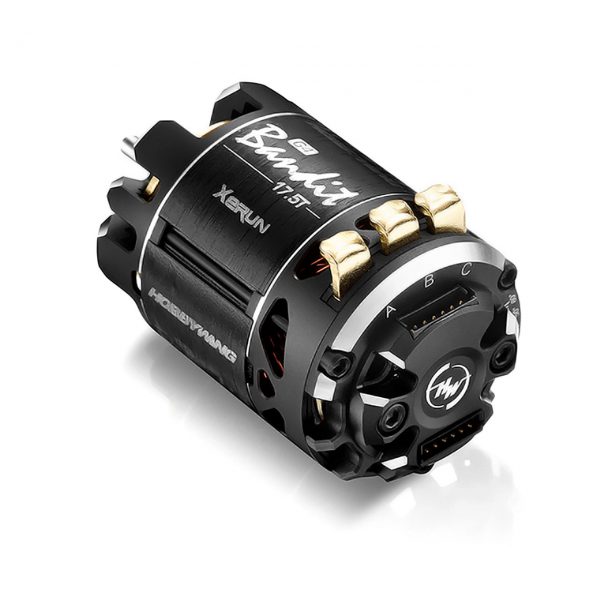

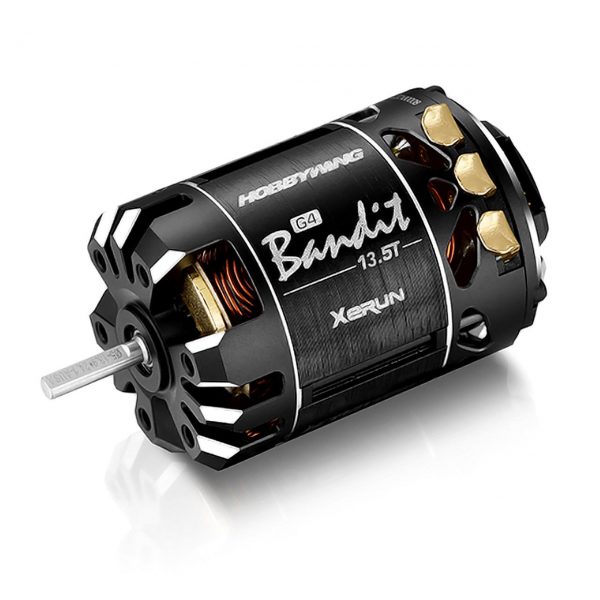

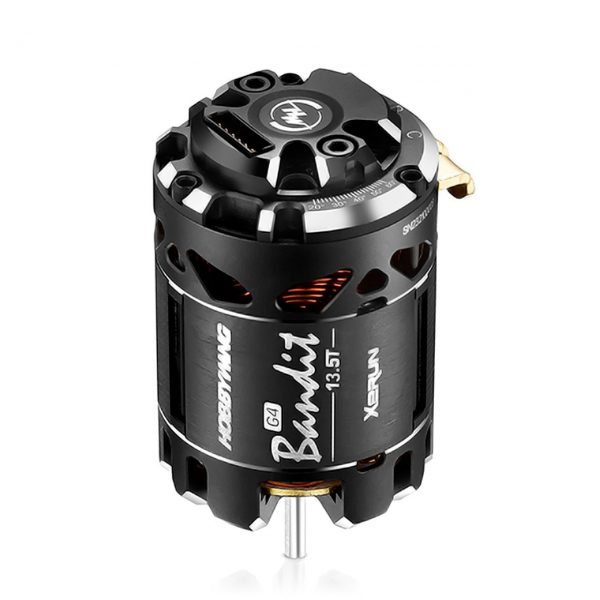

Hobbywing Xerun BANDIT 17.5T/13.5T G4

RM400.00

Hobbywing Xerun BANDIT 17.5T/13.5T G4

Clear
SKU: HW-30401858 Category:

Description

Hobbywing Xerun BANDIT 17.5T/13.5T G4

HW-30401858 (17.5t)
HW-30401857 (13.5t)

Features: HW-30401858

  • More power than the Xerun Bandit G2R series
  • Dual sensor design for optimal wiring in RC car
  • New motor housing with optimized cooling openings
  • Adjustable timing from 20-60°
  • High-precision manufactured rotor
  • High temperature tolerance of the winding

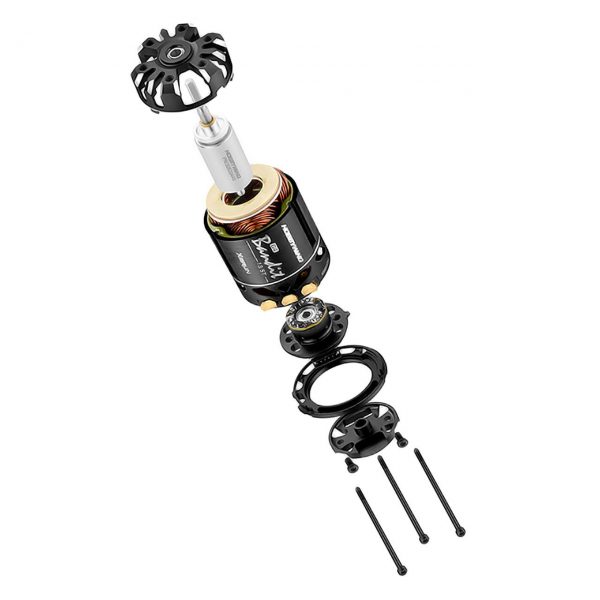

  • Easily disassembled for maintenance

Technical Specifications:

Winding: 17.5T
Type: Sensored Brushless
kV Rating: 2500KV
Max. Power Output: 270W
Max. Current: 34A
No-Load Current: 4.35A
LiPo Cells: 2-3S
Poles: 2
Timing (adjustable): 20-60°
Diameter: 35.8mm
Length: 53.9mm
Shaft Diameter: 3.175mm
Shaft Length: 14mm
Weight: 181.4g
Application: 1/10 Stock, Outlaw Races



Product information "Hobbywing Xerun Bandit Brushless Motor G4 13.5T"

Those who are eager for high performance in 1/10 Outlaw competitions will make the right choice with the Xerun Bandit G4 motor series. This motor proves to be up to 18% more powerful and 12% more efficient compared to its G2R predecessor. With the fully adjustable timing ranging from 20 to 60 degrees, the full potential of the Bandit G4 is unleashed. The motor adopts a fully exposed stator core structure, meaning that the outer stator core is directly exposed to maximize heat dissipation performance.

Features: HW-30401857

  • More power than the Xerun Bandit G2R series
  • Dual sensor design for optimal wiring in RC car
  • New motor housing with optimized cooling openings
  • Adjustable timing from 20-60°
  • High-precision manufactured rotor
  • High temperature tolerance of the winding
  • Easily disassembled for maintenance

Technical Specifications:

Winding: 13.5T
Type: Sensored Brushless
kV Rating: 3200KV
Max. Power Output: 387W
Max. Current: 48A
No-Load Current: 5.13A
LiPo Cells: 2-3S
Poles: 2
Timing (adjustable): 20-60°
Diameter: 35.8mm
Length: 53.9mm
Shaft Diameter: 3.175mm
Shaft Length: 14mm
Weight: 187.6g
Application: 1/10 Stock, Outlaw Races

Additional information

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
FEATURES

17.5T, 13.5T
