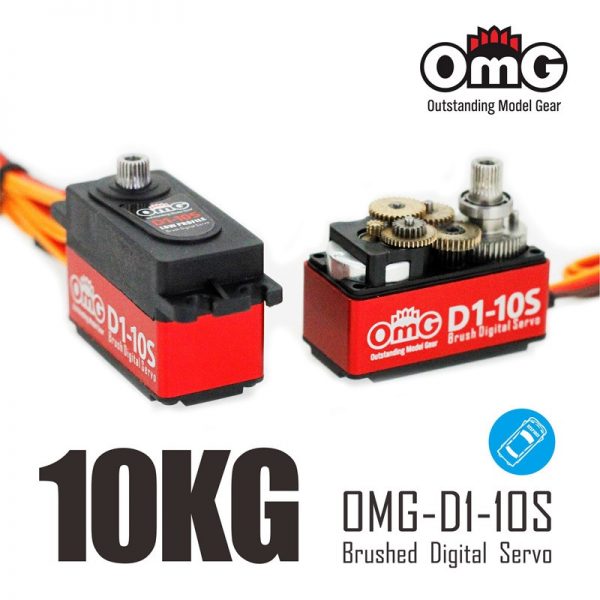

OMG D1-10S LP Brush 6.0V 0.074sec 12kg
Item No. OMG-D1-10S
-Operating voltage: -4.8-6.0V
-Operating speed: -4.8V-0.085sec/60°
-6.0V-0.074sec/60°
-Stall torque:
-4.8V-10kgf.cm(139oz-in)
-6.0V-12kgf.cm(167oz-in)
-Gear Material:Stainless steel
-Horn gear spline:25T Φ5.9

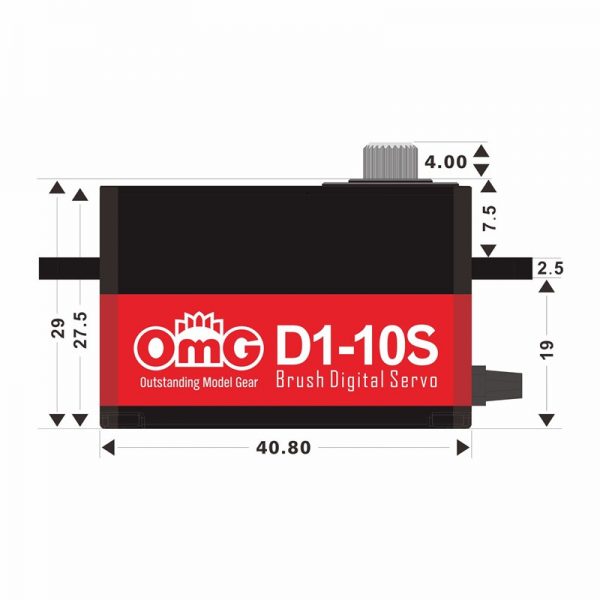

-Size:40.8x20x26mm(1.61×0.79×1.02in)
-Case Material:Middle cover in full metal ,top & bottom cover in plastic
-Weight:52g
-Bearing:2BB
-Motor type:Brushed
-Operating Temperature:-15℃~+70℃
-Operating travel :≈180±10°
-Neutral position :1520μsec
-Frequency:1520uS
-Refresh Rate:333Hz
-Pules width range :500-2500μsec
-Dead band width:2μsec
-Connector wire length:180mm
-Waterproof level:Dust & Water Splash Resistacne
-Programmable:No
