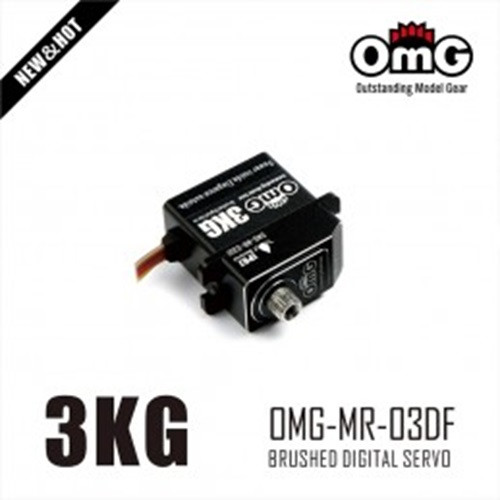

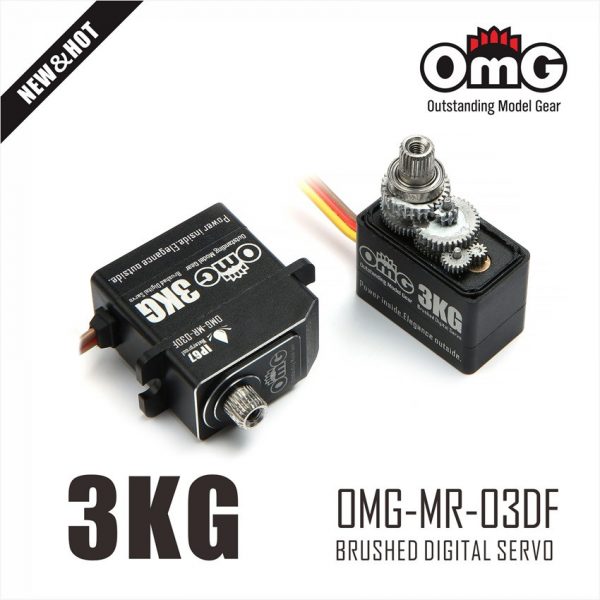

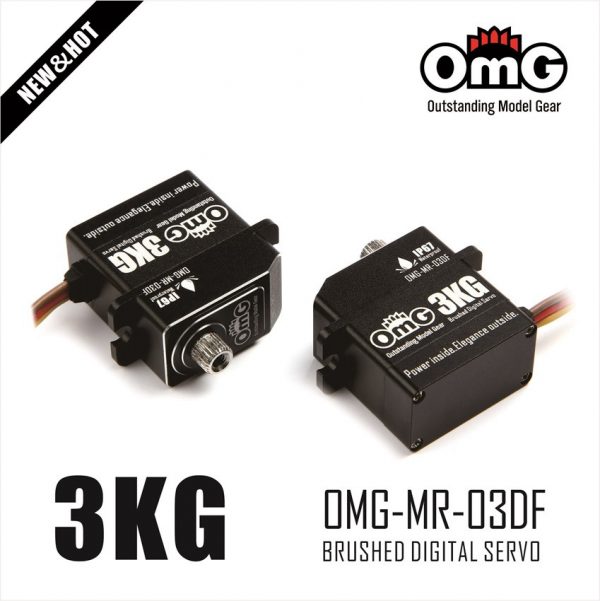

OMG MR-03DF Micro brush 7.4V 0.10sec 4kg
OMG-MR-03DF
Micro size full metal brushed waterproof digital servo, full case in CNC precise engraving, as the diff locking or gear change servo.
-1 unit per pack
Item No. OMG-MR-03DF
Operating voltage:4.8-6.0V
Operating speed:
5.0V-0.12sec/60°
6.0V-0.11sec/60°
Stall torque:
5.0V-2.5kgf.cm(35oz-in)
6.0V-3.2kgf.cm(44oz-in)
Gear Material:Stainless steel
Horn gear spline:25T Φ4.9
Size:23X13X26mm(0.91×0.51×1.02in)
Case material:Full metal
Weight:20g
Bearing:2BB
Motor type:Brushed
Operating Temperature:-15℃~+70℃
Operating travel :≈180±10°
Neutral position :1520μsec
Frequency:1520uS
Refresh rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:180mm
Waterproof level:Dust & Water Splash Resistacne
Programmable:No
