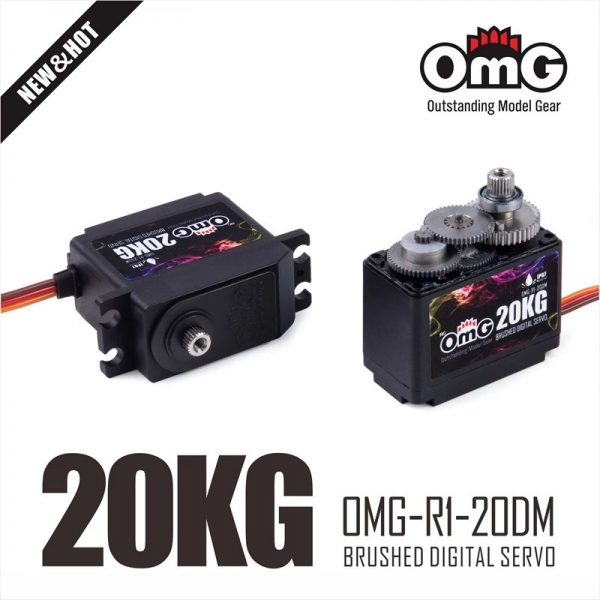

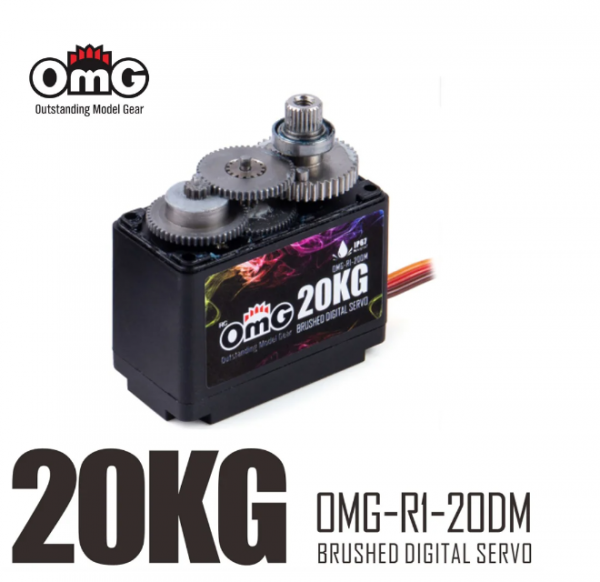

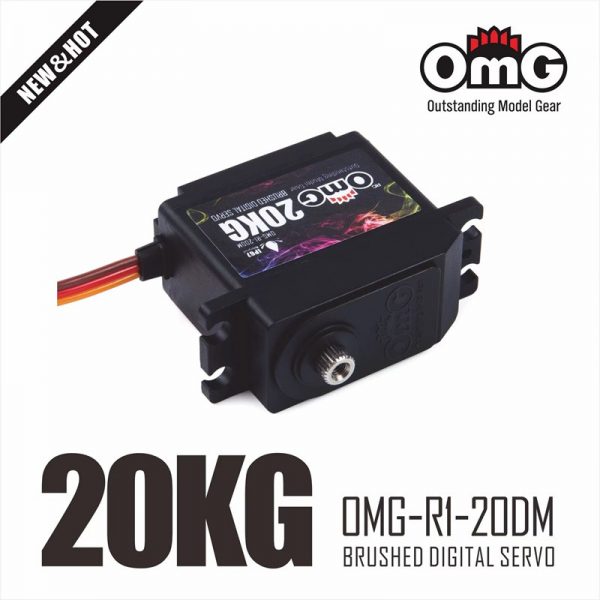

OMG R1-20DM Std Stainless Gear waterproof 7.4V 0.112s 23kg
Item No. OMG-R1-20DM
Operating speed:
6.0V-0.127sec/60°
7.4V-0.112sec/60°
Stall torque:
6.0V-22kgf.cm(306oz-in)
7.4V-23kgf.cm(319oz-in)
Gear Material:Stainless steel
Horn gear spline:25T Φ5.9
Size:41x20x40mm(1.61×0.79×1.57in)
Case Material:Full Plastic
Weight:52g
Bearing:2BB
Motor type:Brushed
Operating Temperature:-15℃~+70℃
Operating travel :≈180±10°
Frequency:1520uS
Refresh Rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:300mm
Waterproof level:IP67
Programmable:No
