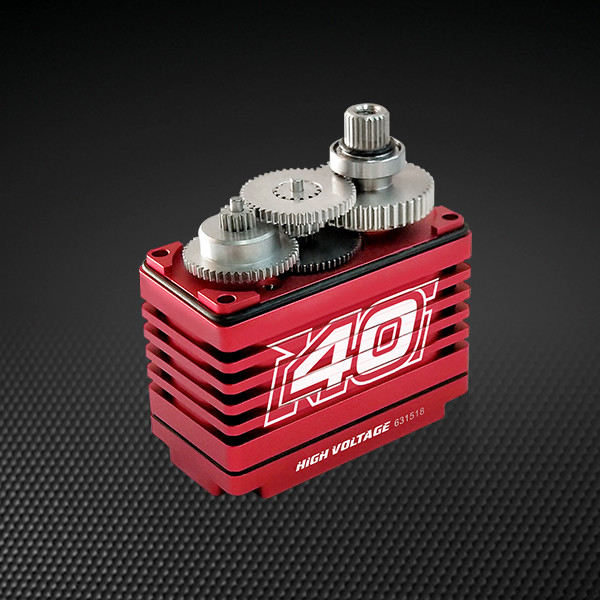

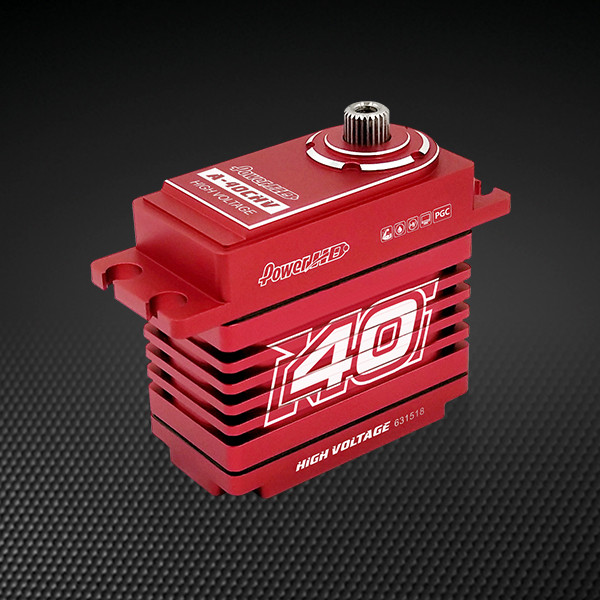

Power HD A-40CHV 40kg HV Coreless Servo

RM268.00

Power HD A-40CHV 40kg HV Coreless Servo

2 in stock

SKU: HD-A-40CHV Category:

Power HD A-40CHV 40kg HV Coreless Servo



Torque(6.0V): 25.0 kg-cm ( 347.2 oz/in)
Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in)
Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in)
Speed: 0.14 sec (6.0V)│0.12 sec (7.4V)│0.10 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 80 g (2.82 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Steel & Aluminum
Operating Temperature:-20℃~60℃
Working frequency:1520μs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
