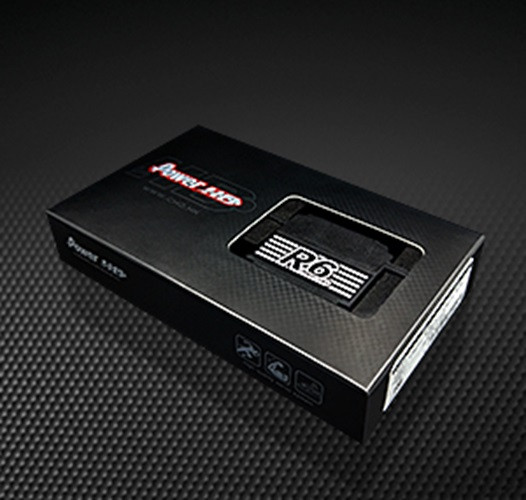

Power HD R6 Low Profile HV (High Voltage) Coreless Servo

RM141.00

Power HD R6 Low Profile HV (High Voltage) Coreless Servo

Out of stock

SKU: HD-R6 Category:

Power HD R6 Low Profile HV (High Voltage) Coreless Servo



R6

for 1/12

Torque(6.0V): 6.5 kg-cm (90.27 oz/in)
Torque(7.4V): 7.5 kg-cm (104.16 oz/in)
Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 28.5 g (1.01 oz)
Bearing Type: Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Copper & Aluminum
Operating Temperature:-20℃~60℃
Working frequency:1520μs / 333hz
Size:35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
