Hobbywing 30103205 EzRun MAX8 G2S

RM502.00

Hobbywing 30103205 EzRun MAX8 G2S

1 in stock

SKU: HW-30103205 Categories: ,

Hobbywing 30103205 EzRun MAX8 G2S



Description:

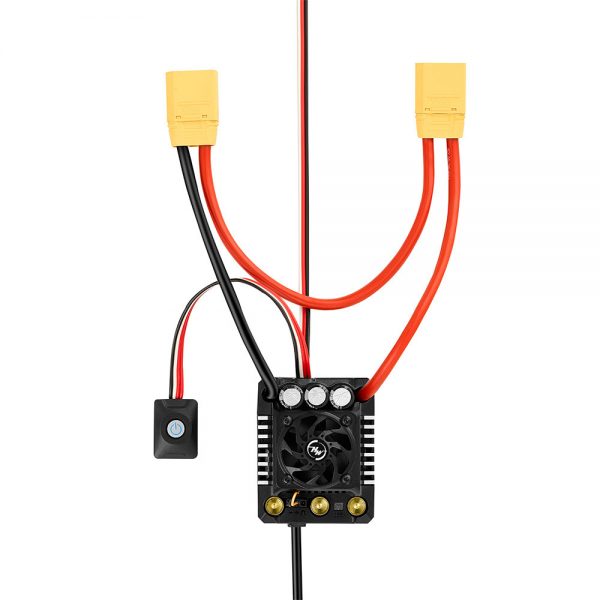

This is Hobbywing EZRun Max8 G2S Waterproof Brushless ESC w/ XT90 Plug For 1/8 RC. The ESC has power, yet smooth and linear throttle response. This balance of power and control allows drivers to drive their vehicles at the limit comfortably. Based on the MAX8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further improved.

The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter settings, data reading, firmware upgrades other operations. The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.

The ESC fan does not run when the ESC temperature is low.The fan automatically turns on when the ESC temperature reaches the preset value. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range. A frameless fan with patented technology is used. The large flow of air from the side of the fan effectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the optimal operating temperature. The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.

The proven Hobbywing waterproof sensor harness provides an element proof solution for sensor based systems. Using a Hobbywing Adaptor (optional) normal/standard sensor motors can be used as well.



Feature:



  • Extreme output, easy to control

  • Optimized hardware, increases in stability and reliability

  • Built-in Bluetooth, directly connected to the mobile APP

  • Built-in data logging function, ease of obtaining power operating status

  • Fan intelligent start and stop function

  • Efficient cooling system

  • High level of protection

  • 1/8th power system turbo timing technology

  • Capacitor overheating protection

  • Waterproof Sensor Harness



Specification:



  • Cont./Peak Current: 160A/1050A

  • Input Voltage: 3-6S Lipo

  • BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)

  • Input Wires: Black-10AWG-150mm*1 Red-10AWG-150mmX1

  • Output Wires: No

  • Input Connectors: XT90

  • Output Connectors: 6.5 Bullet Connectors (Female)

  • Size: 30x30x10mm

  • Voltage Range: 6V/7.4V/8.4V

  • Powered by: BEC

  • Extreme value: Supported

  • Real-time Data: Supported

  • Historical data (Graph): Supported

  • Firmware Upgrade: Supported

  • Size: 60*48*40.5mm

  • Weight: 192g(w/Wires)

Weight 0.25 kg
Dimensions 25.00 × 20.00 × 15.00 cm
