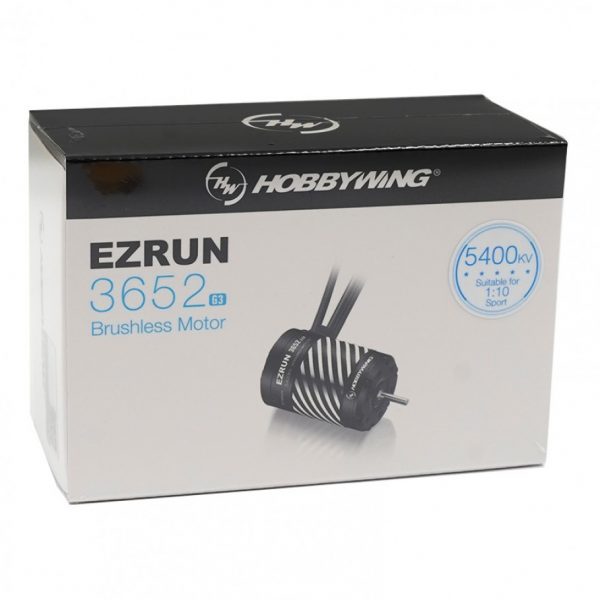

HobbyWing 30402606 EZRUN 3652SD-5400KV G3


This is Hobbywing EZRUN 3652SD G3 5400KV Sensorless Brushless Motor For 1/10 RC Car. The evolution of a sensored motor, increases performance.The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches the EzRun MAX10 G2 ESC.

The high-precision Hall sensor components ensures that the rotor position output is always accurate and consistent, achieving excellent linearity and a great throttle control. The EzRun 3652/3665 G3 motor adopts a high precision bearing that is waterproof in the front end of the motor. The rear end of the motor uses precision iron cover with a smaller structure to improve the capacity, and at the same time, provides a higher bearing speed while keeping resistance low. The operation is smoother and more reliable.

The motor adopts a modular detachable structure design for easy disassembly and daily maintenance. This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor simple. The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.


  • For: 1/10 RC Car

  • Material: Aluminum

  • Color: Black

  • The evolution of a sensored motor, increases performance.

  • Powerful hardware configuration, efficiency is greatly improved

  • The stable power and high output of the motor, makes throttle control for maneuvers (power wheelies, straight line power, and clearing jumps) much easier.

  • Applicable to All Weather & Track Conditions


  • KV Rating: 5400kV

  • LiPo Cells: 2S

  • No-load Current(A): ≤6.8A

  • O.D.(mm): 37

  • Length (mm): 53

  • Shaft Diameter (mm): 3.175

  • Weight (g): 227


  • Hobbywing EZRUN 3652SD G3 5400KV Sensorless Brushless Motor (1 pc)

Additional information

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
