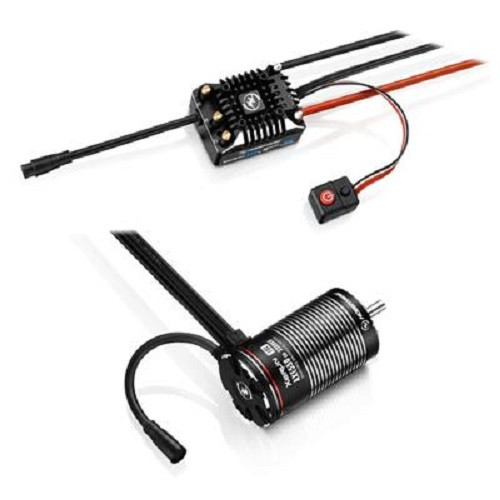

Hobbywing 38020314 COMBO XeRun AXE540L-R2 3300KV

RM954.00

Hobbywing 38020314 COMBO XeRun AXE540L-R2 3300KV

4 in stock

SKU: HW-38020314 Category:

Description

Hobbywing 38020314 COMBO XeRun AXE540L-R2 3300KV

Type

Scale – 1/10th

Brushed/Brushless – BL

Sensored/Sensorless – SD

Waterproof – YES

Specifications

Cont./Peak Current – 80A/480A

Input Voltage – 2-3S Lipo/6-9 Cell NiMH

BEC Output – Switch Mode:6V/7.4V@6A

Wires & Connectors

Wires & Connectors – Black-14AWG-200mm*1 Red-14AWG-200mm*1

Output Wires – No

Input Connectors – XT60

Output Connectors – No

ESC Programing via

SET Button on ESC – Not Supported

LED Program Box – Not Supported

LCD Program Box – Not Supported

WiFi Module – Not Supported

Programming Port – Built-in bluetooth

Firmware

Firmware Upgrade – Supported

Size & Weight

Size – 47.4×36.2×26.5mm

Weight – 108g (Including the weight of input line)

Applications

Applications – Only support XERUN AXE R2 motor

Vehicles – 1/10thRock Crawler


Additional information

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
