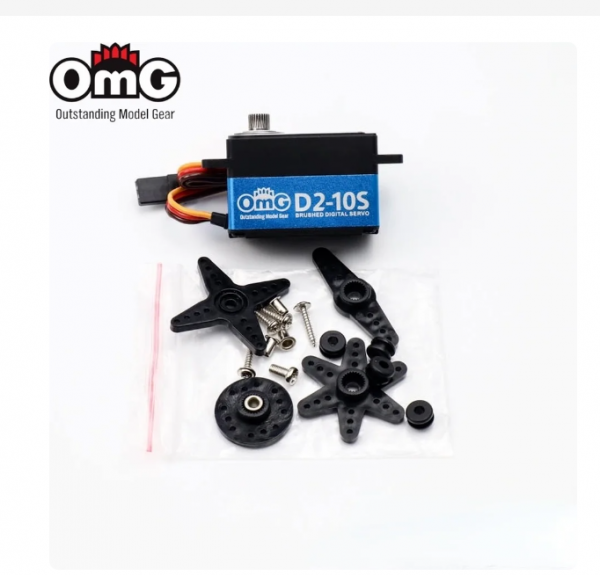

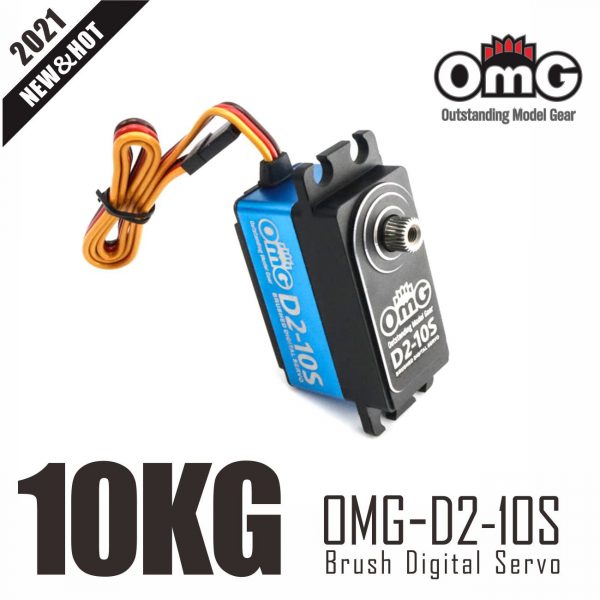

OMG D2-10S LP Brush 6.0V 0.074sec 12kg
Special design for 1:10 RC car, low profile, aluminium brushed high voltage servo, top & middle cover in metal, bottom cover in plastic, metal gear. Entry level Servo. upgraded version of D1-10S.
Item No. D2-10S
Operating voltage:4.8-6.0V
Operating speed:
4.8V-0.085sec/60°
6.0V-0.074sec/60°
Stall torque:
4.8V-10kgf.cm(139oz-in)
6.0V-12kgf.cm(167oz-in)
Gear Material:Stainless steel
Horn gear spline:25T Φ5.9
Size:40.8x20x26mm(1.61×0.79×1.02in)
Case Material:Top & middle cover in full metal ,bottom cover in plastic
Weight:57g
Bearing:2BB
Motor type:Brushed
Operating Temperature:-15℃~+70℃
Operating travel :≈180±10°
Neutral position :1520μsec
Frequency:1520uS
Refresh Rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:180mm
Waterproof level:Dust & Water Splash Resistacne
Programmable:No
