OMG R4-70BF Brushless IP67 8.4V 0.095s 70kg

RM405.00

OMG R4-70BF Brushless IP67 8.4V 0.095s 70kg

2 in stock

SKU: OMG-R4-70BF Category:

OMG R4-70BF Brushless IP67 8.4V 0.095s 70kg

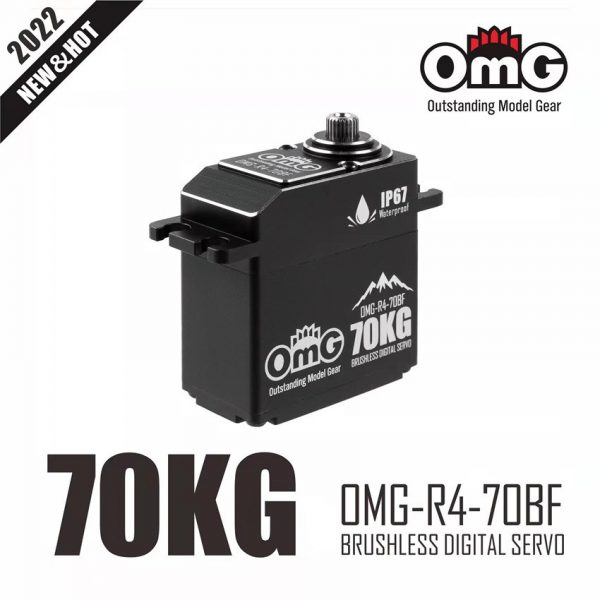

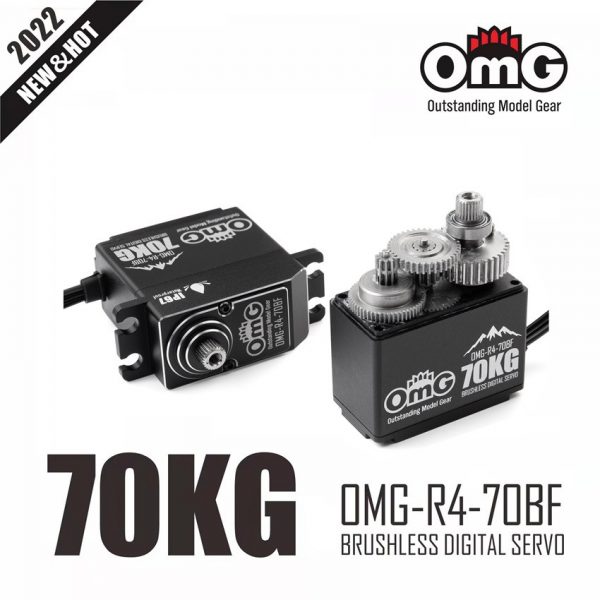

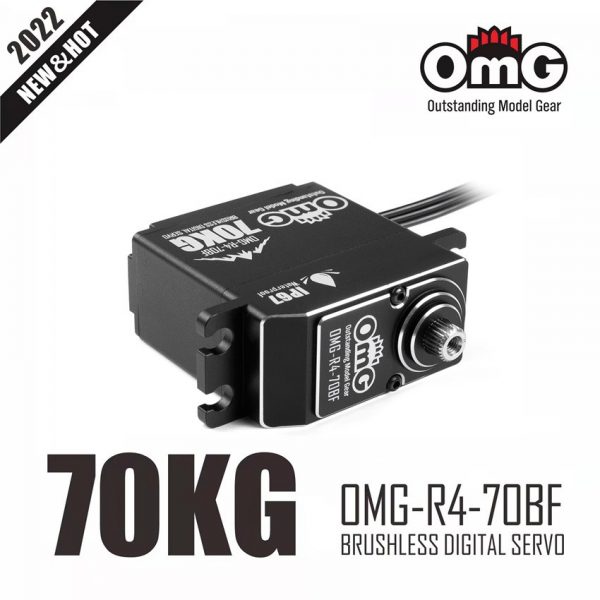

Special desgin for 1:8 RC Vehicle and above 60CC large plane. Standard profile full metal brushless motor ultra torque high voltage servo, full body in CNC precise engraving, steel gear, waterproof IP67.



Item No. OMG-R4-70BF

Operating voltage:4.8-8.4V

Operating speed:

6.0V-0.138sec/60°

7.4V-0.105sec/60°

8.4V-0.095sec/60°

Stall torque:

6.0V-55kgf.cm (764oz-in)

7.4V-62kgf.cm (861oz-in)

8.4V-70kgf.cm (972oz-in)

Gear Material:Stainless steel

Horn gear spline:25T Φ5.9

Size:40x20x42.5mm(1.57×0.79×1.67in)

Case Material:Full Metal

Weight:84g

Bearing:3BB

Motor type:Brushless

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Neutral position :1520μsec

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:IP67

Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
