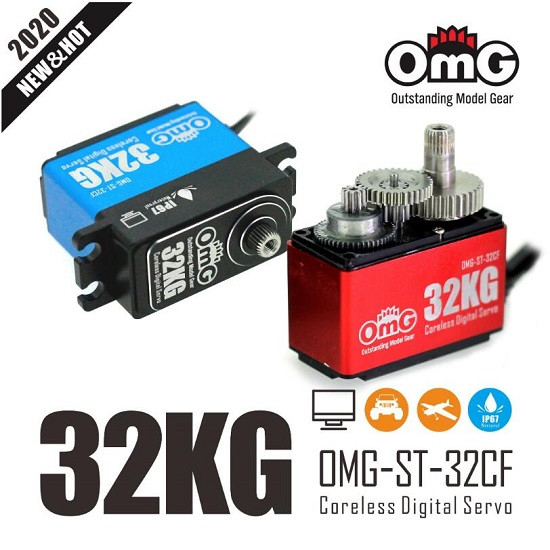

OMG ST-32CF-BU Std Coreless 8.4V 0.083sec 32kg BLUE

RM237.00

OMG ST-32CF-BU Std Coreless 8.4V 0.083sec 32kg BLUE

4 in stock

SKU: OMG-ST-32CF-BU Category:

OMG ST-32CF-BU Std Coreless 8.4V 0.083sec 32kg BLUE

Standard size full metal coreless high voltage Digital Servo, full case in CNC precise engraving, matte cover. Fit for 1:10/1:8 crawler and 1:10 RC Vehicle, and plane above 60CC, waterproof, programmable.

Technical Details

  • Operating voltage:7.4-8.4V
  • Operating speed:
    • 7.4V-0.089sec/60'
    • 8.4V-0.083sec/60'
  • Dynamic torque:
    • 7.4V-29kg-cm
    • 8.4V-32kg-cm
  • Horn gear spline:25T
  • Size:40x20x38mm
  • Weight:77g
  • Limit angle:180±10°(500-2500μsec)
  • Rotating direction:180°(1000-2000μsec)
  • Operating travel :220
  • Neutral position :1520μsec
  • Maximum:≈180°(500-2500μsec)
  • Pules width range :500-2500μsec
  • Dead band width:2μsec
  • Connector wire length:315 mm
  • Connector wire gauge:#22PVC
Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
