OMG ST-36BF Std Coreless 8.4V 0.075sec 37kg BLUE

RM300.00

OMG ST-36BF Std Coreless 8.4V 0.075sec 37kg BLUE

Out of stock

SKU: OMG-ST-36BF-DB Category:

OMG ST-36BF Std Coreless 8.4V 0.075sec 37kg BLUE



Item No. OMG-ST-36BF

Operating speed

7.4V-0.078sec/60°

8.4V-0.075sec/60°

Stall torque:

7.4V-36.0kgf.cm(500oz-in)

8.4V-37.0kgf.cm(514oz-in)

Gear Material:Stainless steel

Horn gear spline:25T Φ5.9

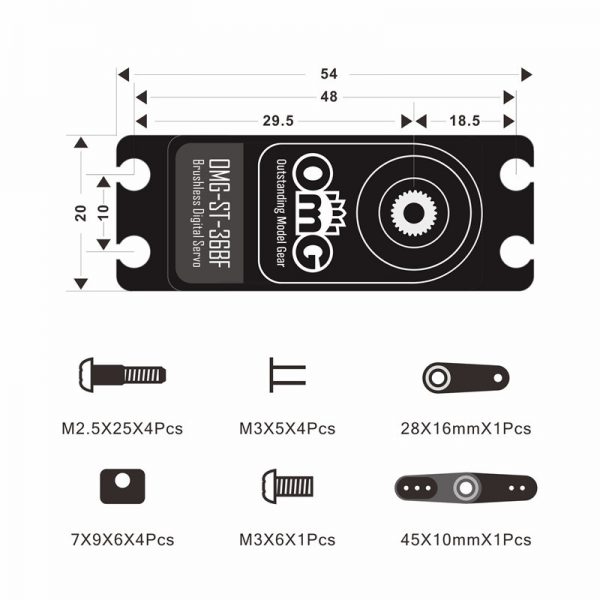

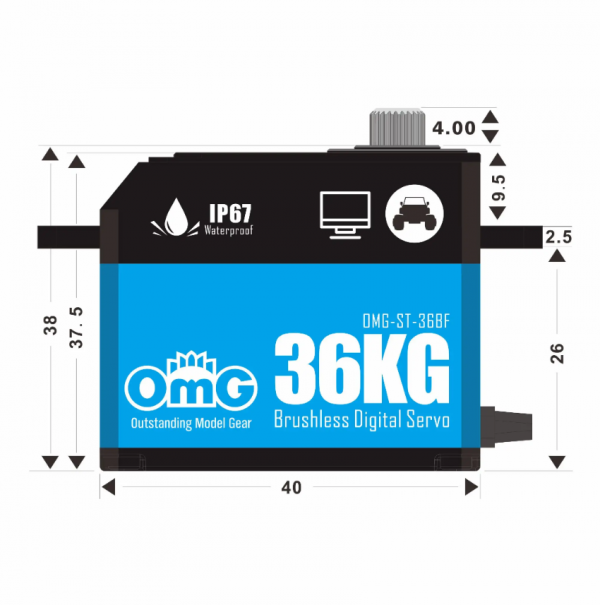

Size:40x20x38mm(1.57×0.79×1.5in)

Case Material:Full Metal

Weight:77g

Bearing:2BB

Motor type:Brushless Motor

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:IP67

Programmable:Yes



Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
