Tamiya 47326 TT02R 1/10 RC Car Special Edition TT02R Chassis Kit


Tamiya 47326 TT02R 1/10 RC Car  Special Edition TT02R Chassis Kit

Out of stock

SKU: TAM-47326 Category:

Tamiya 47326 TT02R 1/10 RC Car  Special Edition TT02R Chassis Kit

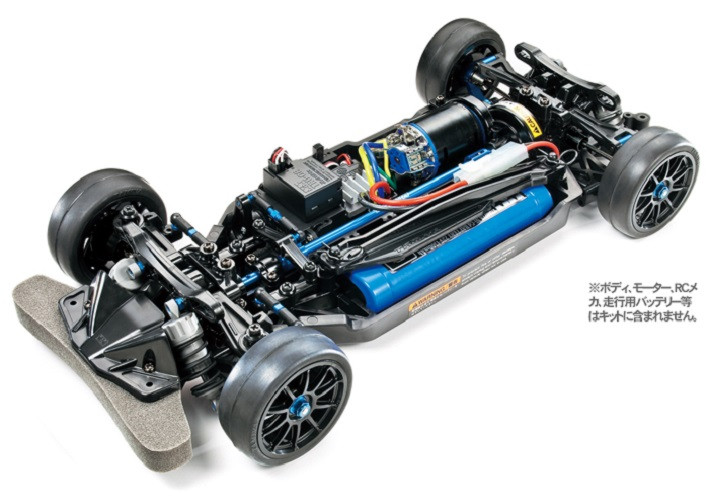

Take the TT-02 Racing This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminum rear uprights give 3-degree toe-in for more stable cornering, while an aluminum motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction.

The kit also includes a TT-02 high speed gear set (68T).

Separately Required Items
★2-channel R/C system w/ESC
★R6/AA/UM3 batteries for transmitter
★Type 540 motor
★Electronic Speed Controller (ESC)
★Battery pack & charger
★7.2-7.4volt battery
★Paint: Tamiya PS paint

Featured Components

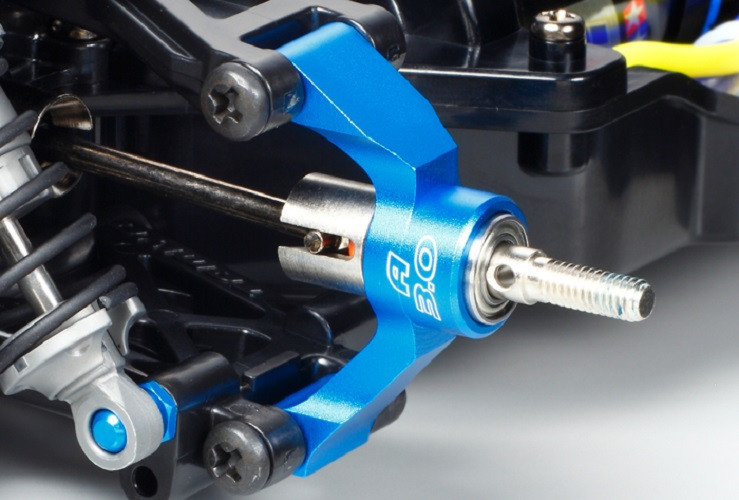

●Aluminum Rear Uprights (3-Degree Toe-In)

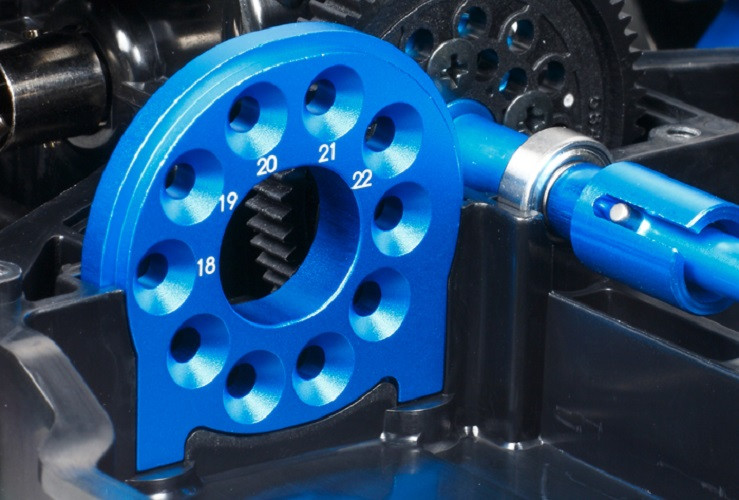

●Aluminum Motor Mount
●TT-02 Aluminum Propeller Joints
●TT-02 Aluminum Propeller Shaft
●TT-02 Full Ball Bearing Set
●Metal Drive Shafts, Wheel Axles and Gearbox Joints
●3x18mm Aluminum Turnbuckle Shafts
●4mm Aluminum Flange Lock Nuts (Blue)
●5mm Aluminum Short Ball Connector Nuts (Blue)
●5mm Aluminum Ball Connectors (Blue)
●Medium-Narrow Racing Slick Tires
●5mm Ball Connectors
●CVA Oil Dampers & Springs Specifications
●Length: 376mm, Width: 182mm
●Wheelbase: 257mm
●Tire Width/Diameter: 24/64mm (Front & Rear)
●Bathtub-type Frame
●Shaft-Driven 4WD
●Front/Rear 4-Bevel Resin Differentials
●3-Piece Steering Tie-Rod
●4-Wheel Double Wishbone Suspension

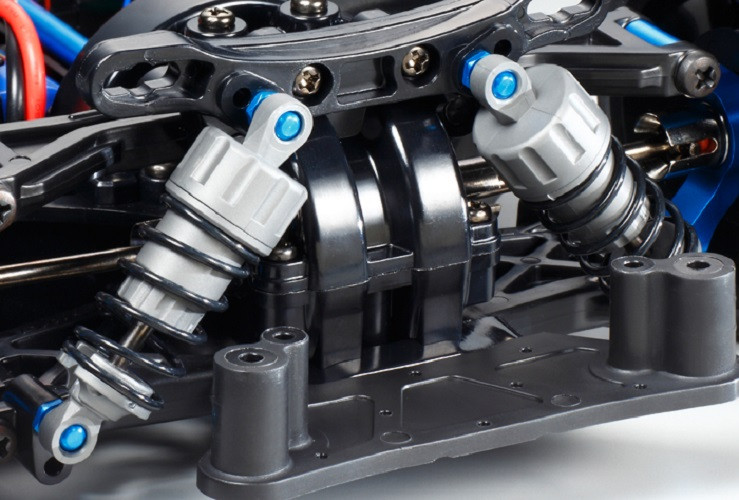

●Front/Rear CVA Oil Dampers
●Includes 68T and 64T spur gears. Combine with separately-sold pinions for Gear Ratio from 9.82:1 to 5.74:1.
●Electronic Speed Controller (ESC) is sold separately.



    • -Adjustable Gear Ratio Yes
    • -Bearings Includes full ball bearings
    • -Chassis Material ABS Plastic
    • -Chassis Type TT-02R
    • -Construction Type Assembly Kit
    • -Differential Type Gear
    • -Drive Type 4WD
    • -Electronic Speed Control (esc) Sold Separately
    • -Motor Sold Separately
    • -Required To Complete 2-channel radio, steering servo, ESC, 190mm touring car body set, and 7.2-7.4volt battery & battery charger
    • -Scale 1/10
    • -Shock Damper CVA Oil Filled
    • -Suspension Fully Independent Double Wishbone
    • -Terrain Use On-Road
Weight 2.0 kg
Dimensions 50.00 × 21.00 × 15.00 cm
