TAMIYA 58622A 1/24 Heavy Dump Truck (GF-01)


TAMIYA 58622A 1/24 Heavy Dump Truck (GF-01)

1 in stock

SKU: TAM-58622A Category:


TAMIYA 58622A 1/24 Heavy Dump Truck (GF-01)


This R/C assembly kit depicts a dump truck modeled upon those which do the heavy work in locations like quarries and large-scale construction sites. The model is based on the popular gear-driven GF01 chassis.

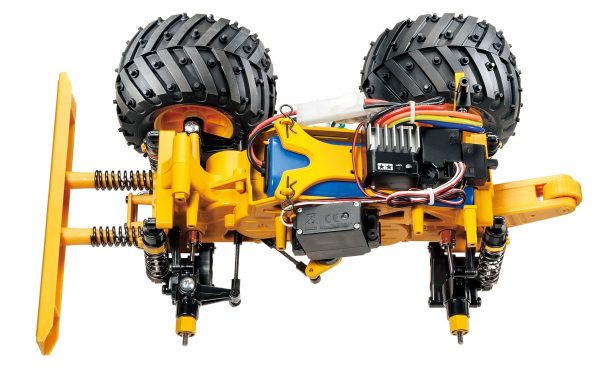

The GF01 chassis plays off the successful and fun line-up of RC kits such as the Wild Willy 2, Volkswagen Type 2 and the Farm King Wheelie. Whereas those kits featured a 2WD and easy to wheelie platform, the new GF01 is a 4WD incarnation with the motor directly placed in the center in order to drive the gears in the front and rear gearbox


  • -Scale : 1/24
  • -Construction Type : Assembly kit
  • -Terrain Use : Multi-Purpose
  • -Drive-train : 4WD
  • -Drive Type : Gearbox
  • -Drive Line : Dog bone
  • -Differential type : Gear
  • -Suspension : Fully independent double wishbone
  • -Steering mechanism : Bell-crank
  • -Shock damper : friction damper
  • -Shock Damper Material: Plastic
  • -Tire Type: Rubber
  • -Tire tread : Lug/pin-spike
  • -Body material : ABS Plastic
  • -Chassis material : Plastic
  • -ESC: Not Include
  • -LED Light buckets: No
  • -LED lights: No
  • -Motor : 540-brushed type
  • -Bearings : Plastic bushings
  • -Adjustable camber: Fixed
  • -Adjustable toe angles : Fixed
  • -Adjustable ground clearance : Fixed
  • -Adjustable gear ratio : Fixed
  • -Adjustable wheelbase : Fixed
  • -Adjustable track width: Fixed
  • -Adjustable shock angle: Fixed
  • -Special feature 1 : The realistic injection-molded resin body features separate cab and rear bed parts.
  • -Special feature 2 : Alternate rear bed between flat and raised positions by changing the position of the 2 stays and snap pins in the body mounts. Note: It is not advised to put objects in the rear bed, or drive -the model with it elevated.
  • -Special feature 3 : Chassis and deep rim wheel parts are molded in yellow for an authentic appearance.

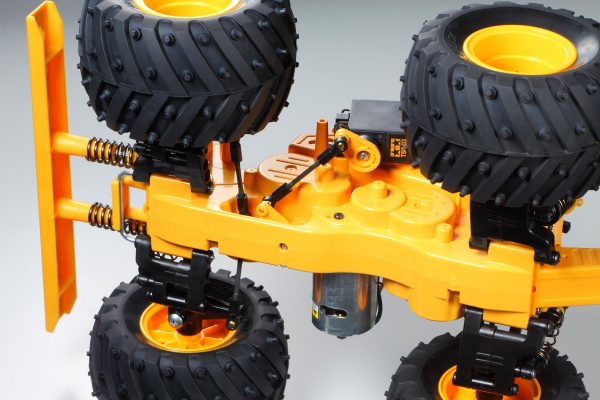

  • -Special feature 4 : The 4WD GF01 chassis provides an excellent feeling of big scale, and uses front and rear differentials in sealed gearboxes integrated in the frame.
  • -Special feature 5 : 4-wheel double wishbone suspension uses friction dampers.
  • –Special feature 6 : The ''square'' setup chassis uses similar tread (194mm) and wheelbase (174mm) lengths.
  • -Special feature 7 : Torque-tuned motor is included.
  • Special feature 8 : Comes with 115mm-diameter tires.



  • -Length: 350mm
  • -Width: 270mm
  • -Height: 210mm
  • -Tread: 194mm
  • -Wheelbase: 174mm



Tamiya 1/24 GF01 Heavy Dump Truck 4WD EP Car Kit w/Motor (1 Set)


  • -2-channel radio & Receiver

  • -Steering servo

  • -ESC

  • -7.2-7.4volt battery pack

  • -Compatible charger

  • -Tamiya PS paint

  • -Tool


  • Adjustable Gear Ratio Fixed
  • Bearings Plastic bushing
  • Body Material ABS Plastic
  • Body Stickers Included
  • Chassis Material ABS Plastic
  • Chassis Type GF-01
  • Construction Type Assembly kit
  • Differential Type Gear
  • Drive Type 4WD
  • Electronic Speed Control (esc) Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
  • Led Light Buckets No
  • Led Lights No
  • Motor 540-brushed type Torque Tuned
  • Required To Complete 2-channel radio, steering servo, 7.2volt battery & battery charger
  • Scale 1/24
  • Shock Damper Friction damper
  • Suspension 4-wheel fully independent double wishbone
  • Terrain Use Multi-Purpose

Additional information

Weight 3.50 kg
Dimensions 50.00 × 40.00 × 25.00 cm
