TAMIYA 58636 TA07 PRO Chassis Kit


TAMIYA 58636 TA07 PRO Chassis Kit

1 in stock

SKU: TAM-58636 Category:


TAMIYA 58636 TA07 PRO Chassis Kit

This 4WD R/C touring car chassis assembly kit is based around a composite structure that consists of a narrow lower deck and an upper frame. The part design layout provides the chassis optimal torsional rigidity which can be further adjusted by removing the frame center section. The highly efficient single belt drivetrain offers 3 motor position locations, each with its own performance characteristics suited to different tracks and setups. Proven TRF419 design suspension, gear differential units and steering components are joined by proven TRF aluminum shock dampers and universal shafts to make this chassis a hi-spec racer!

TRF419 design Uprights
TRF419 design Suspension Arms
TRF419 design Gear Differential Units
TRF Dampers
Universal Drive Shafts

Further Details from Tamiya's Design Team

The upper frame allows for a symmetrical chassis design, which in turn helps to optimize chassis flex. Note: that front/rear stiffener, and center brace parts are attached separately to the integrated lower and side frame piece.

The efficient single belt winds back around the main and counter pulleys. Using one belt as opposed to two facilitates the changeable motor position feature. It allows simple reconstruction of the chassis using the existing belt rather than many different lengths.

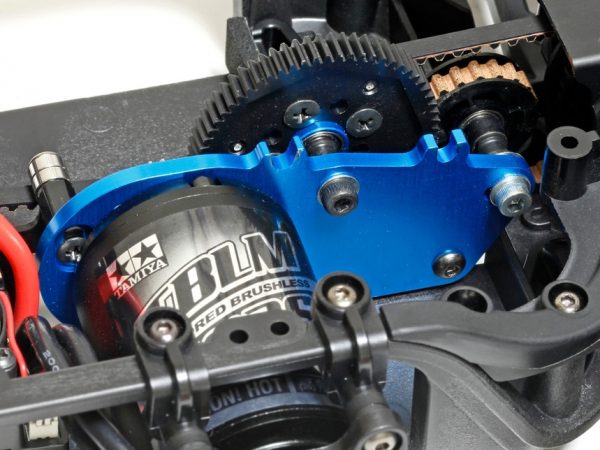

The 3 motor positions cover a total range of 52mm. Changing motor positions is easy; just take off the cover, remove 2 screws, and re-attach the motor mount in the desired position.

TRF419 suspension parts and gear differentials give top-level performance and reliability. Like on the TRF419, the servo mount is attached on one side only, with chassis flex in mind. The battery can be removed via the chassis side.


-Adjustable Gear Ratio Yes.
-Bearings Includes full ball bearings.
-Body Material Not Included.
-Body Stickers N/A..
-Chassis Material FRP Fiberglass Reinforced Plastic.
-Chassis Type TA07.
-Construction Type Assembly Kit.
-Differential Type Gear-Type (Oil-Filled).
-Discontinued True.
-Drive Type 4WD.
-Electronic Speed Control (esc) N/A.
-Motor Not Included.
-Required To Complete 190mm Body Parts Set, Tires, 2-Channel radio, Servo, ESC, Battery & Charger.
-Scale 1/10.
-Shock Damper Aluminum Body Oil Filled.
-Suspension Fully Independent Double Wishbone.
-Terrain Use On-Road.

Additional information

Weight 3.50 kg
Dimensions 45.00 × 30.00 × 25.00 cm
