TAMIYA 58657 1/10 RC Land Rover Defender 90 (CC-01)


1 in stock

SKU: TAM-58657 Category:


Land Rover Defender 90 (CC-01)

Separately Required Items
●2-Channel Transmitter
●Batteries for Transamitter
●Battery pack
●Battery charger

Land Rover Legend

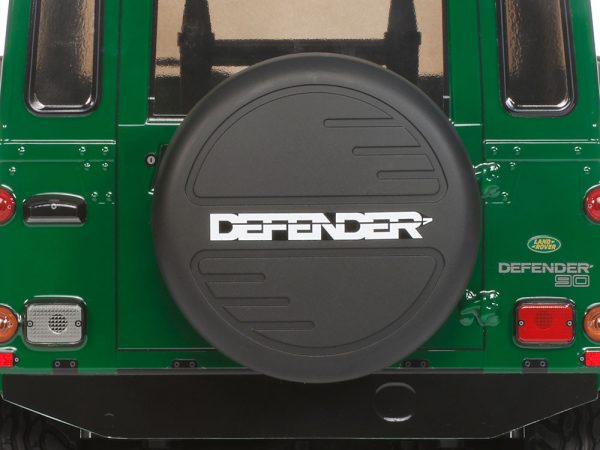

Loved by millions across the world for its superb 4WD performance and distincive functional form, the Land Rover Defender had a long production run from 1948 until 2016. This R/C model assembly kit recreates the short wheelbase Defender 90 variant, with the unmistakeable form captured by a polycarbonate body featuring front and rear light cases which are compatible with separately sold LEDs. Separate molded parts are included to depict features such as the outer roll cage, front grille and spare tire cover. The CC-01 chassis is a great base, providing a sure-footed drive whether on-road or off; it is paired with matte plated wheels and treaded tires.

The All-Terrain CC-01 Chassis
The CC-01's highly reliable and efficient full-time 4WD system features a longitudinally-positioned motor, which transmits power to the front wheels via the gearbox and to the rear wheels via propeller shaft with universal joints. Front and rear differentials enable smooth cornering, and for even greater off-road performance on rough terrain, the rear differential may be locked during assembly. The chassis suspension employs double-wishbone front upper single links and lower H-shaped arms plus rear rigid suspension. With CVA oil dampers front and rear, there's enough cushion to take on even the roughest surfaces.

★Length: 457mm
★Width: 200mm
★Height: 214mm
★Wheelbase: 242mm
★Tread (F/R): 160mm
★Tire Width/Diameter (Front & Rear): 33/90mm
★Ladder Frame Bathtub Type Chassis
★Longitudinally-Placed Motor & Shaft-Driven Full-Time 4WD
★Front and Rear 3-Bevel Differential Gears
★Front Suspension: Double Wishbone
★Rear Suspension: 4-Link Rigid
★Front and Rear CVA Oil Dampers
★Gear Ratio = 14.67:1
★Type 540 Motor included

Additional information

Weight 3.50 kg
Dimensions 52.00 × 30.00 × 25.00 cm
