TAMIYA 58675A Mercedes-Benz G 500 (CC-02)
Description:
Get ready to do some fun trail exploration with the all-new Tamiya CC-02 (Cross Country 2) chassis platform! Tamiya’s designers have been hard at work to bring R/C enthusiasts the next generation of Tamiya trail driving with a completely revamped machine.

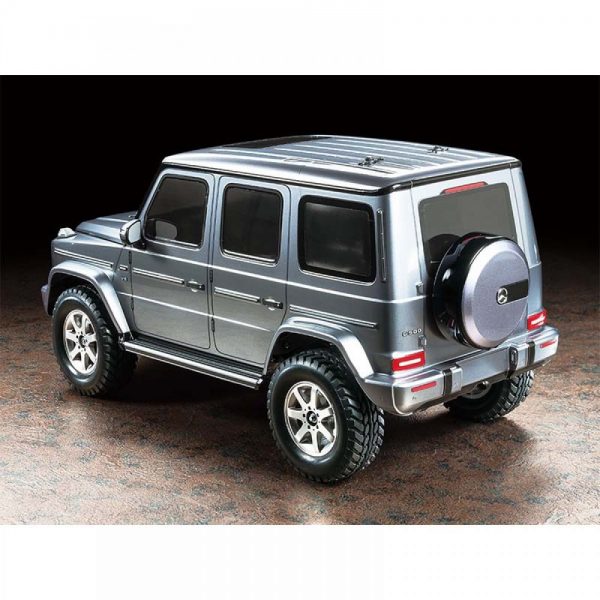

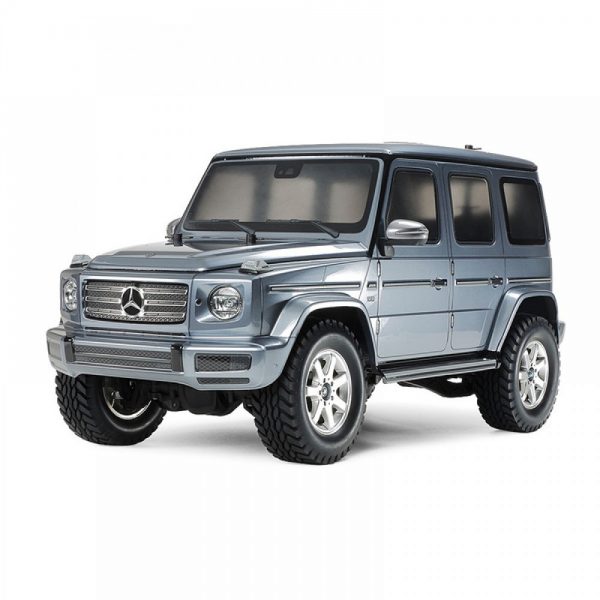

The first body to grace the capable new chassis is a highly-detailed polycarbonate recreation of the Mercedes-Benz G 500, which first graced the Mercedes stable of SUV’s in 2018.
Feature:
- -1/10 scale R/C model assembly kit.
- -TLU-01 LED Light Unit and LEDs included.
- -G 500 body is recreated accurately in polycarbonate.

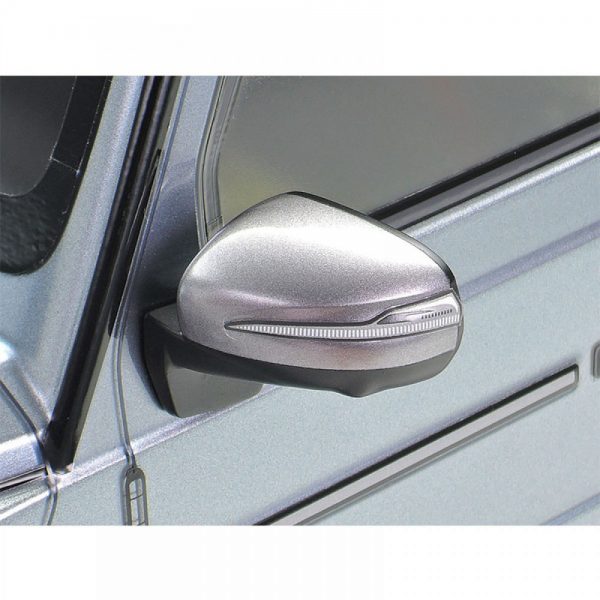

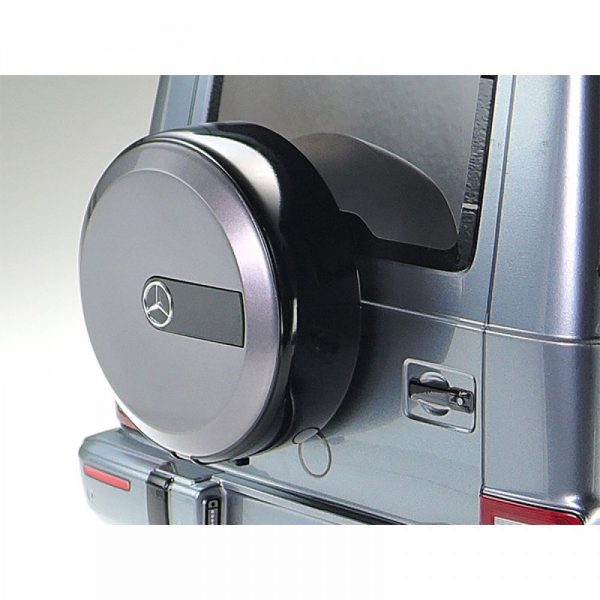

- -Separately molded parts are included for the front grille, side mirrors and spare tire cover.
- -Designed for a wide range of off-road terrain including rocky surfaces, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability.
- -A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears to the front and rear.
- -Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some serious fine-tuning!

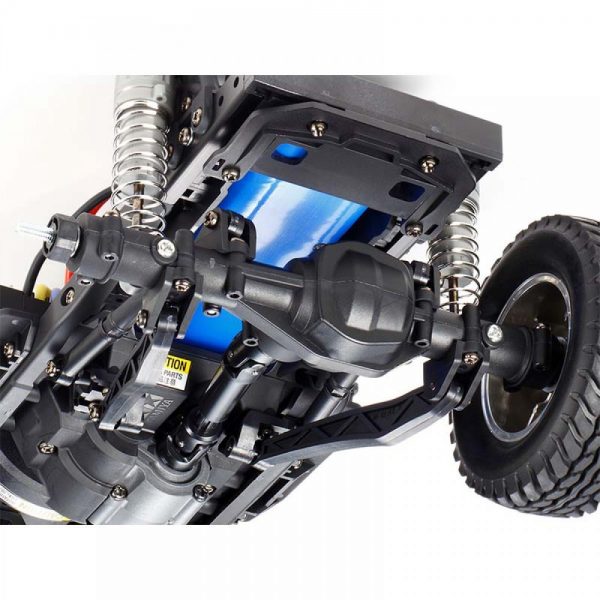

- -4-link rigid suspension front and rear, with CVA oil dampers.
- -Differential Gears: 3-bevel differential gears provide a smooth driving. They can also be locked (with reassembly) for driving on poor surfaces.
- -Axle Housings: Housings enclose a central differential gear and axle shafts in a rigid setup that lets the chassis take on rough terrain with ease: if one wheel rises, the other is pushed downward to help the chassis gain traction.
- -Gearbox: Power from the motor is routed via the realistic looking gearbox and transfer case, from its propeller shafts to the differential gears, and finally to the wheels.
- -4-Link Suspension: A rigid setup employs 4 plastic link arms on each axle housing and four oil dampers. This ergonomic design offers superior durability and the ground clearance.
Specification:
- -Length: 455mm
- -Width: 196mm
- -Height: 207mm
- -Wheelbase: 267mm
Include:
- -Tamiya 1/10 CC02 Car Kit
- -Motor
- -Mercedes Benz G500 Clear Body Set
- -Decals
- -Instruction
Required:
-
-2-channel radio & Receiver
-
-Steering servo
-
-ESC
-
-7.2-7.4volt battery pack Compatible charger
-
-Tamiya PS paint
-
-Tool
