TAMIYA 58716A Yaris Rally1 Hybrid (TT-02)

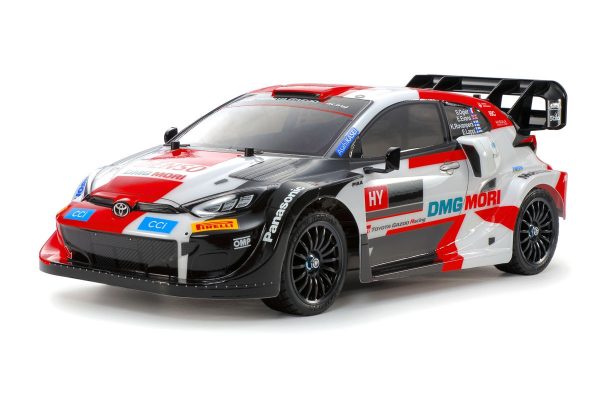

This is a radio control assembly kit of the Toyota GAZOO Racing WRT/GR Yaris Rally1 Hybrid that began competing in 2022 in compliance with Rally 1 restrictions. The combination of hybrid unit integrated with motor and generator and engine is capable of over 500PS and 500Nm, while the car also features regenerative charging during brake function. A 1.6-liter inline 4-cylinder direct injection turbo engine uses non-fossil fuel. In addition to side skirts and large rear wing, air ducts are equipped right and left at the rear to cool down the hybrid unit. In 2022, it achieved both Manufacturer’s and Driver’s Championships.

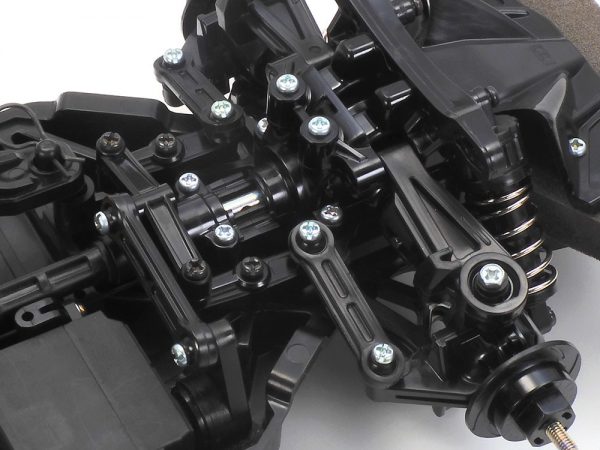

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

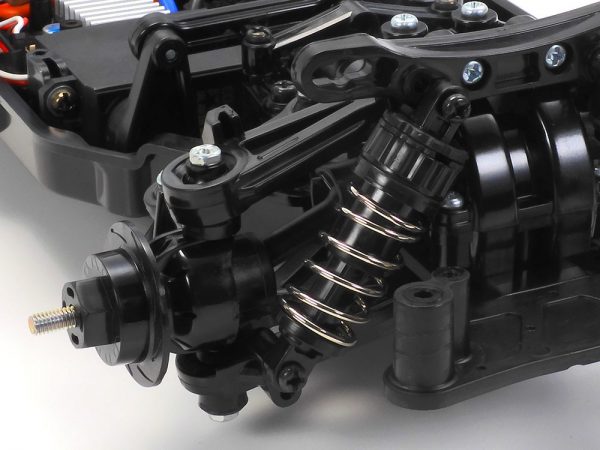

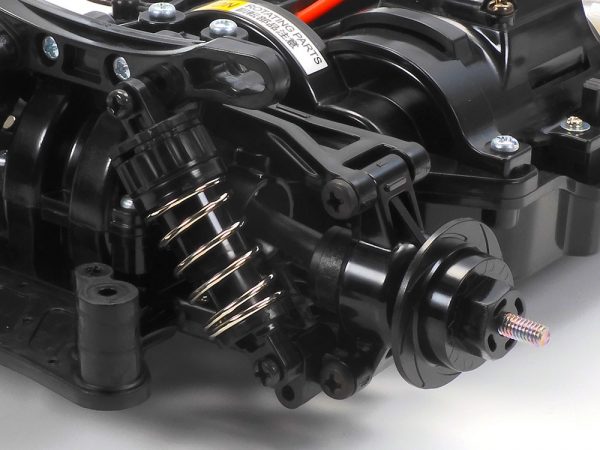

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

• 1/10 scale R/C model assembly kit. Length: 416mm, width: 190mm, height: 146mm.
• Wheelbase: 257mm.
• Lightweight, durable polycarbonate body.

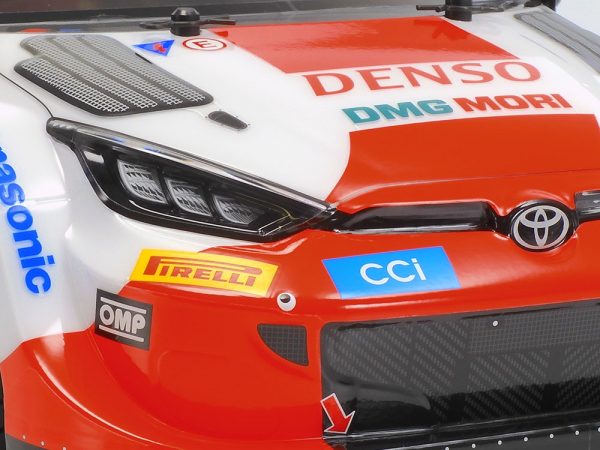

• Separate polycarbonate front light cases add three-dimensional look. (Note: front LED lights cannot be attached).

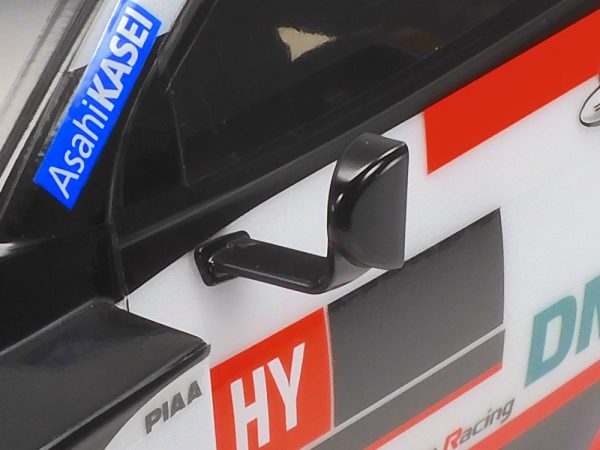

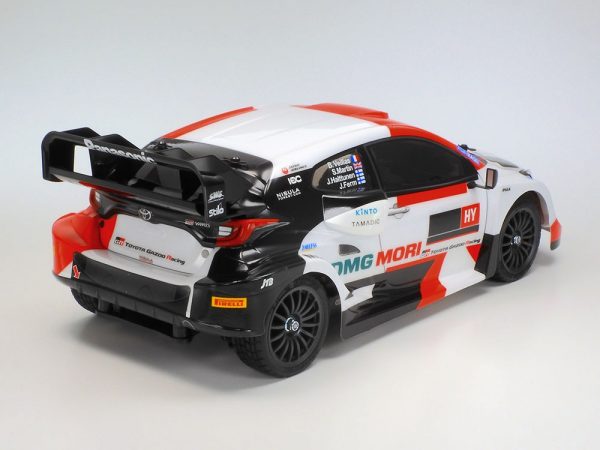

• Separate plastic parts molded in black realistically depict side mirrors, 2-piece large rear wing, side ducts and caps.
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• Dark gun metal color multi-spoke Wheels (Item 50678) are paired with racing radial tires (Item 50419).
• Includes Urethane Bumper for crash protection.
• Comes with stickers and window masking tape for use in the painting process.

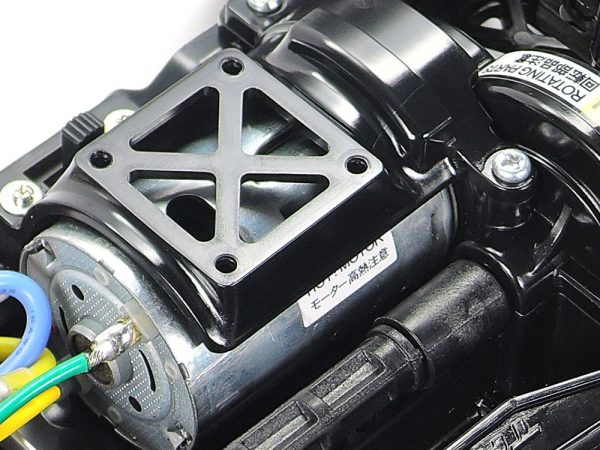

• Includes 540 Torque Tuned motor
• Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

Adjustable Gear Ratio Yes
Bearings Plastic bushing
Body Material Polycarbonate
Body Stickers Included
Chassis Material ABS Plastic
Chassis Type TT-02
Construction Type Assembly Kit
Differential Type Gear
Drive Type 4WD

Motor 540-brushed type
Required To Complete 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.

Scale 1/10
Shock Damper Friction type
Suspension Fully Independent Double Wishbone
Terrain Use On-Road

Additional information

Weight 3.50 kg
Dimensions 50.00 × 30.00 × 25.00 cm
