Tamiya 58726 XV-02RS PRO Chassis

RM1,474.00

Tamiya 58726 XV-02RS PRO Chassis

2 in stock

SKU: TAM-58726 Category:

Description

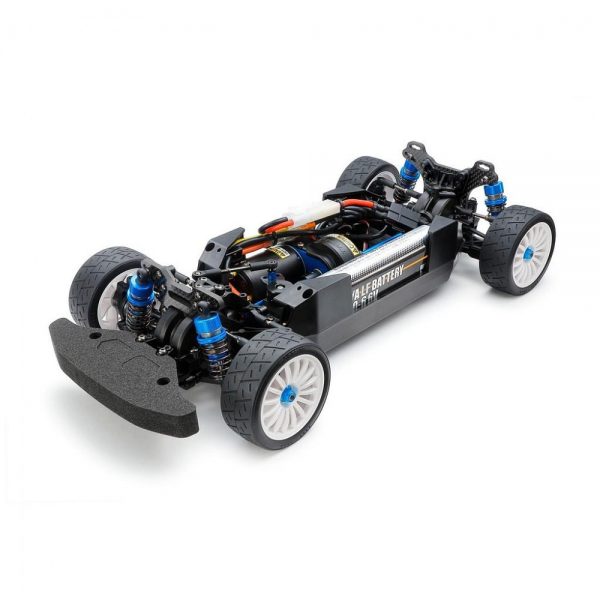

Tamiya 58726 XV-02RS PRO Chassis

Description:

The XV-02 RS chassis is an on-road variant of the rally XV-02 platform. The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.



Feature:



  • -1/10 scale R/C chassis assembly kit.

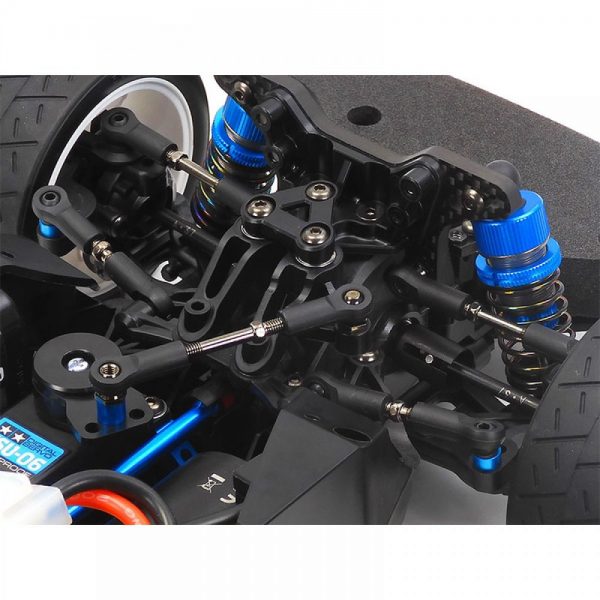

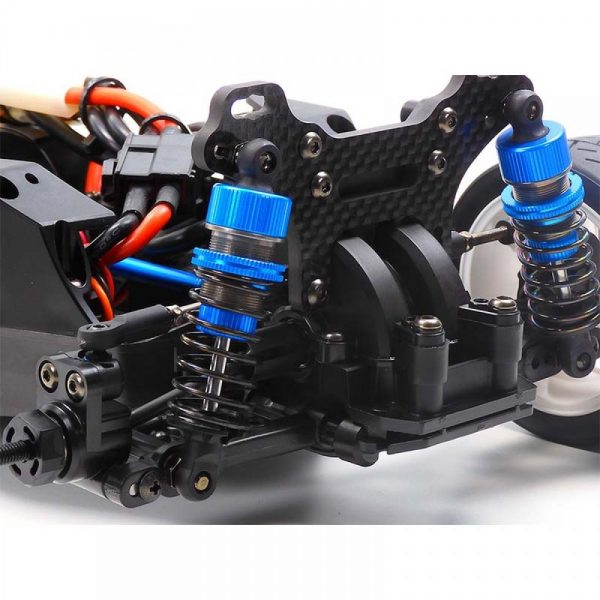

  • -Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.

  • -18-spoke wheels are paired with racing semi-slick tires.

  • -Equipped with front midship motor plus identical length front and rear long propeller shafts.

  • -Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.

  • -Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.

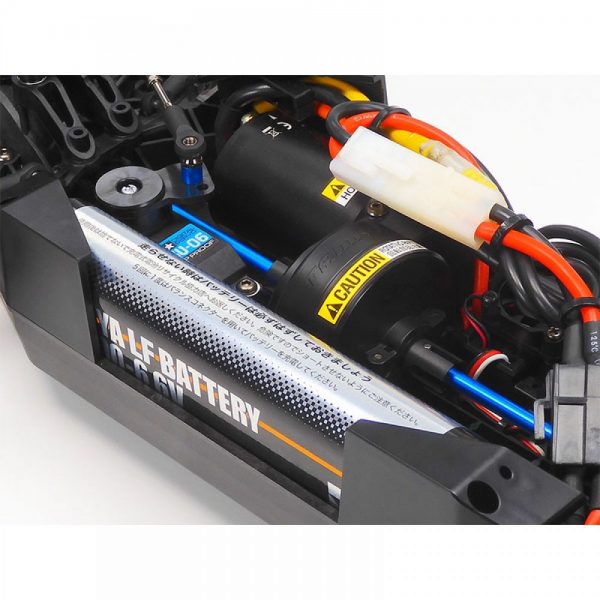

  • -A longitudinal battery pack is positioned in the center-left for optimum balance.

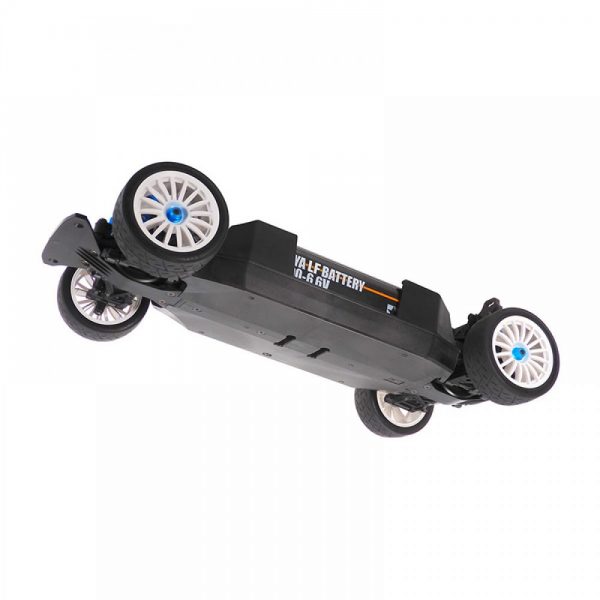

  • -The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.

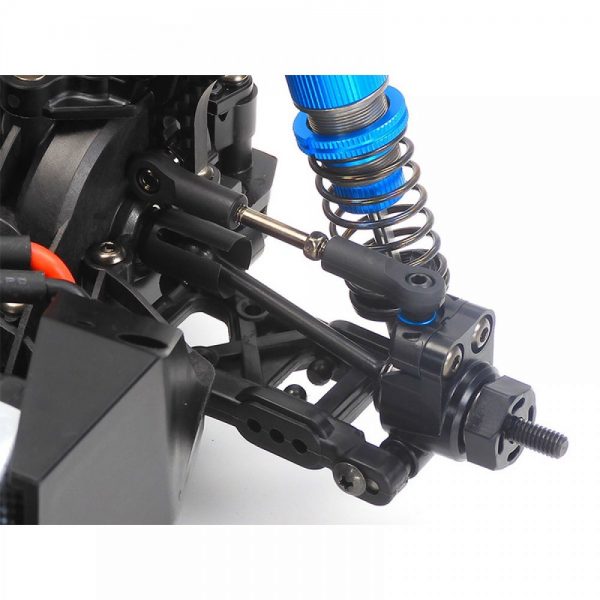

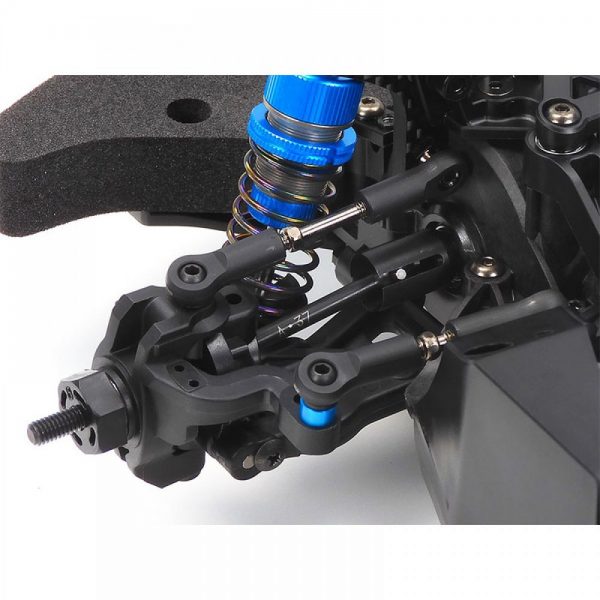

  • -Caster blocks feature an angle of six degrees.

  • -Includes front and rear universal drive shafts, and an aluminum servo mount.





Include:



  • -Tamiya 1/10 XV-02RS Pro Chassis Kit EP (1 Set)



Required:



  • -2-channel radio & Receiver

  • -Steering servo

  • -ESC

  • -7.2-7.4volt battery pack Compatible charger

  • -540 Motor

  • -190mm Body Set

  • -Tamiya PS paint

  • -Tool

Additional information

Weight 3.50 kg
Dimensions 45.00 × 30.00 × 25.00 cm
