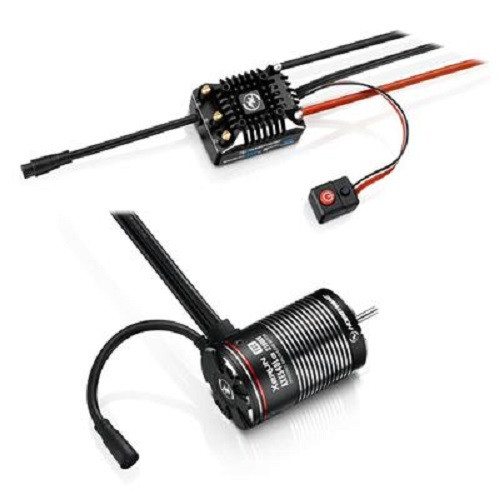

Hobbywing 38020313 COMBO XeRun AXE540L-R2 2800KV
Type
Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Waterproof – YES
Specifications
Cont./Peak Current – 80A/480A
Input Voltage – 2-3S Lipo/6-9 Cell NiMH
BEC Output – Switch Mode:6V/7.4V@6A
Wires & Connectors
Wires & Connectors – Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires – No
Input Connectors – XT60
Output Connectors – No
ESC Programing via
SET Button on ESC – Not Supported
LED Program Box – Not Supported
LCD Program Box – Not Supported
WiFi Module – Not Supported
Programming Port – Built-in bluetooth
Firmware
Firmware Upgrade – Supported
Size & Weight
Size – 47.4×36.2×26.5mm
Weight – 108g (Including the weight of input line)
Applications
Applications – Only support XERUN AXE R2 motor
Vehicles – 1/10thRock Crawler
