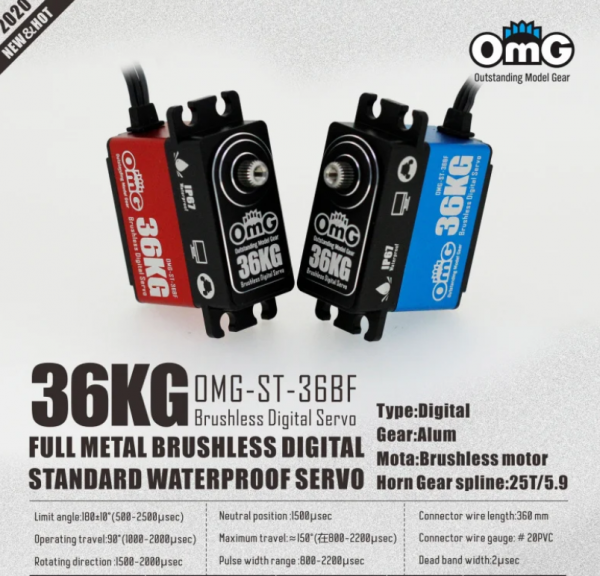

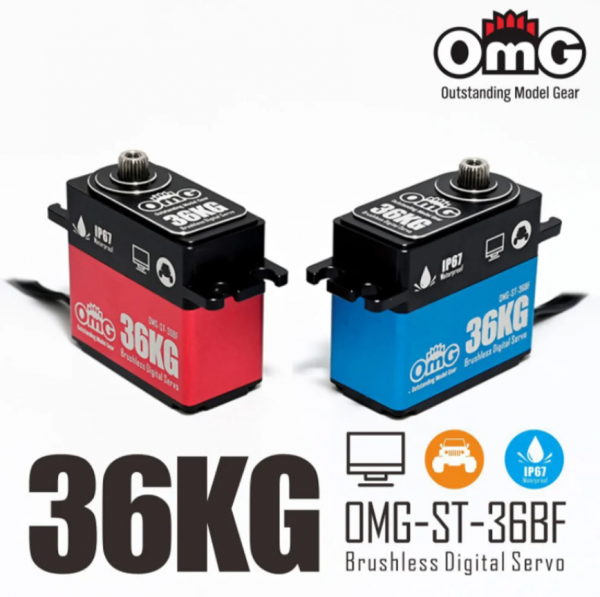

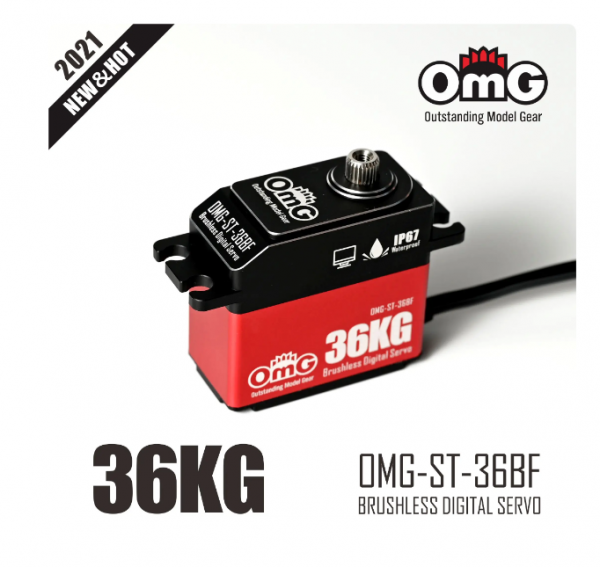

OMG ST-36BF-RD Std Coreless 8.4V 0.075sec 37kg RED

RM290.00

OMG ST-36BF-RD Std Coreless 8.4V 0.075sec 37kg RED

Out of stock

SKU: OMG-ST-36BF-RD Category:

OMG ST-36BF-RD Std Coreless 8.4V 0.075sec 37kg RED

Standard size full metal high voltage digital servo, full case in CNC precise engraving, matte cover. Fit for 1:10/1:8 crawler, 1:10 RC Vehicle, and airplane above 60CC, waterproof, programmable.Technical Details

Technical Details

  • Operating voltage:7.4-8.4V
  • Operating speed:
    • 7.4V-0.078sec/60'
    • 8.4V-0.075sec/60'
  • Dynamic torque:
    • 7.4V-36kg-cm
    • 8.4V-37kg-cm
  • Horn gear spline: 25T
  • Size: 40x20x38mm
  • Weight: 77g
  • Limit angle:180±10°(500-2500μsec)
  • Rotating direction:180°(1000-2000μsec)
  • Operating travel :220
  • Neutral position :1520μsec
  • Maximum:≈180°(500-2500μsec)
  • Pules width range :500-2500μsec
  • Dead band width:2μsec
  • Connector wire length:315 mm



Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
