Tamiya 58683 Actros MP4 MB (TT-01E)


3 in stock

SKU: TAM-58683 Category:

Description

Tamiya 58683 Actros MP4 MB (TT-01E)

Separately Required Items
●2-Channel Transmitter
●Batteries for Transamitter
●Receiver
●Servo
●Battery pack
●Battery charger
-ESC (CHAT WITH US TO CHECK AVAILABILITY)

Get Racing!

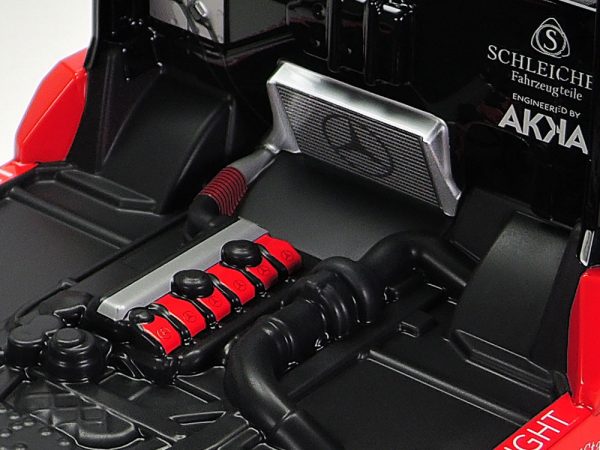

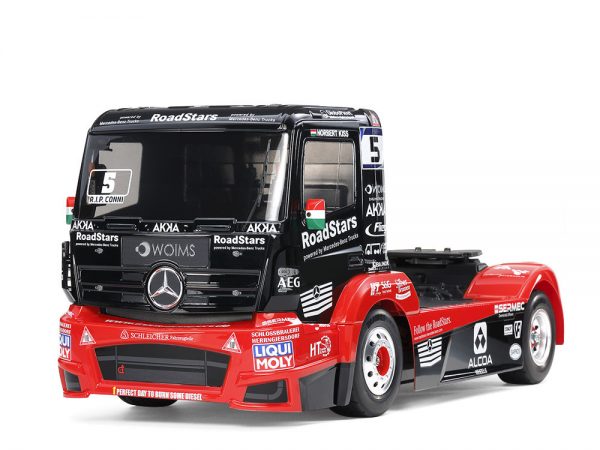

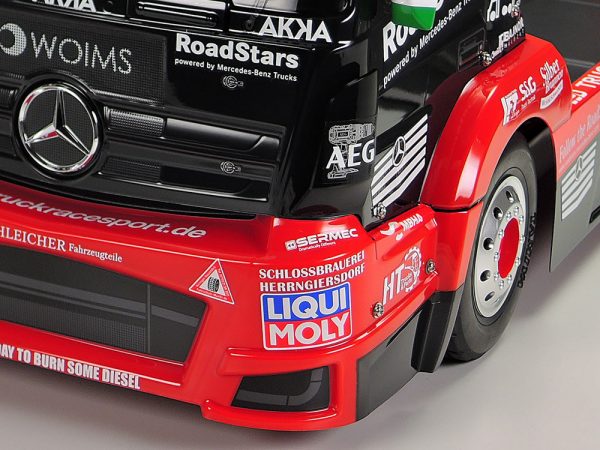

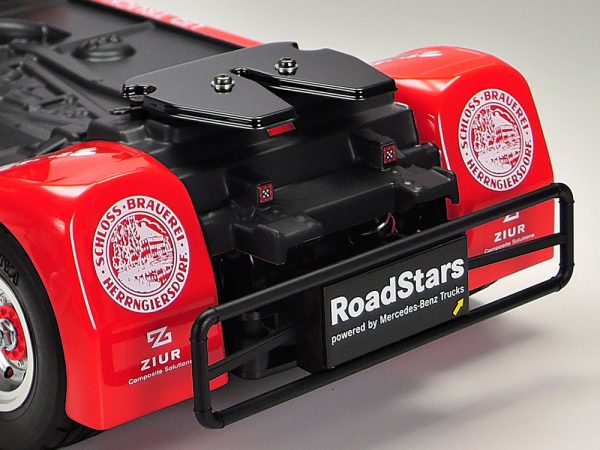

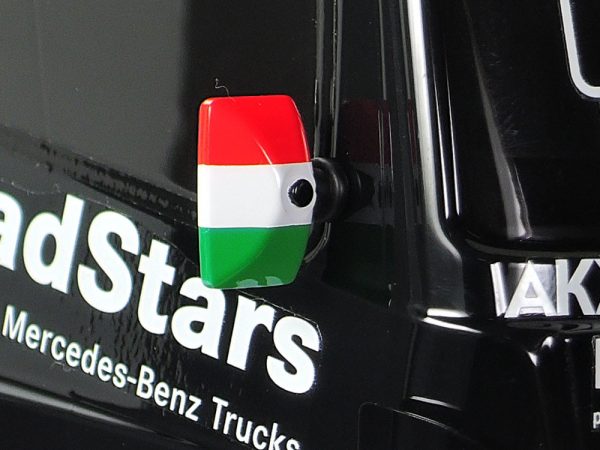

Truck racing is developing an ever-stronger fan base, attracted to the high speed drama played out on the circuit by these racing big rigs. Fans of the European scene will be familiar with the Mercedes-Benz Actros MP4 which is recreated by this R/C model assembly kit. The cab is recreated in three polycarbonate pieces, with the front bumper and body rear also molded in the same material. Stickers are included in the kit to recreate the numerous sponsor markings, and the model is based upon the the proven shaft-driven 4WD of the TT-01 Type-E chassis.

TT-01 Type-E: Evolved Chassis

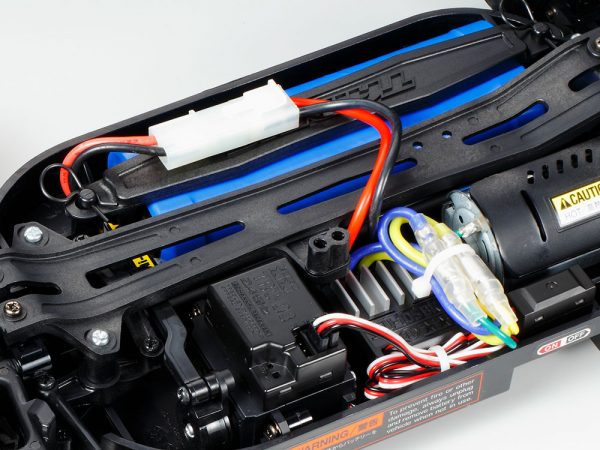

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for a low center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low center of gravity, balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce an excellent drive. 70mm-diameter radial tires are paired with dedicated racing truck wheels; the high sidewalls make for forgiving turns.

Specifications
Length: 441mm,
Width: 188mm,
Height: 194mm
Wheelbase: 257mm
Tire Width/Diameter: 28/70mm
Bathtub Type Chassis Frame
Longitudinally-Mounted Motor, Shaft-Driven Full-Time 4WD
Front/Rear 3-Bevel Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Front/Rear Friction Dampers
Gear Ratio=8.35:1
Type 540 Motor
ESC -ESC (CHAT WITH US TO CHECK AVAILABILITY)

Additional information

Weight 3.50 kg
Dimensions 52.00 × 30.00 × 25.00 cm
